GGB-FP20

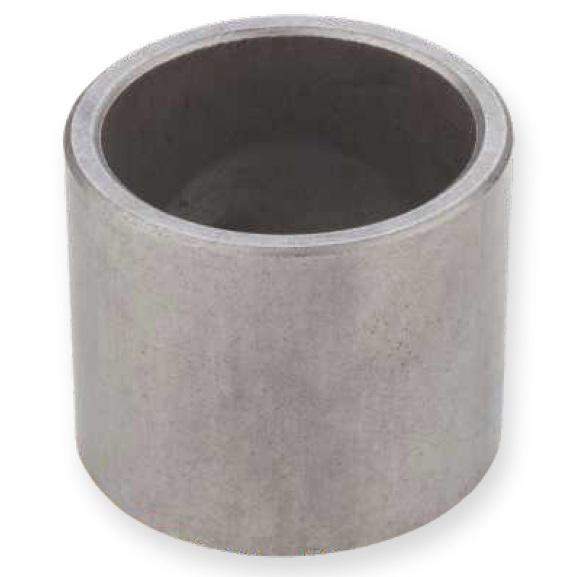

GGB-FP20 are Metafram oil impregnated sintered iron bearings available as Cylindrical bushes, flanged
bushes and customized bearing designs for made to order purpose. These are maintenance free bearings for general engineering applications.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 20 N/mm2 |
| Dynamic Load | - | 10 N/mm2 |
| Operating Temperature | -180 °C | 300 °C |
| Sliding Speed Dry | 0.1 m/s | 6 m/s |
Variant Applications
| Machines / Applications |
|---|
| Domestic Appliances and Hand Tools |
| FHP Motor Bearings |
| Industries |
|---|
| General Industry |
