GGB-LD
GGB-LD are Bronze bearings made of CuSn8 with grease reservoirs available as Cylindrical bushes with non-standard dimensions, customized bearing designs for made to order purpose.

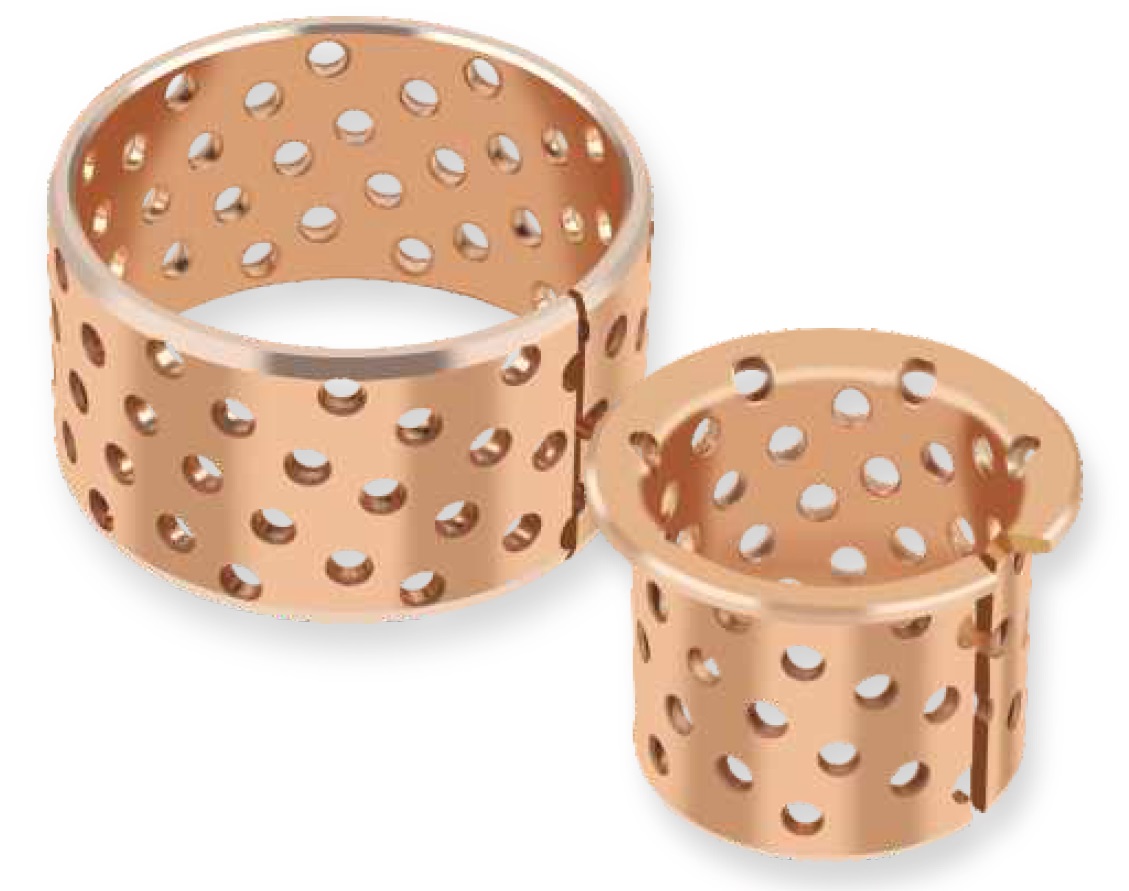

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 120 N/mm2 |
| Dynamic Load | - | 40 N/mm2 |
| Operating Temperature | -40 °C | 150 °C |
| Sliding Speed Dry | - | 2.5 m/s |
Variant Applications
| Machines / Applications |
|---|
| Agricultural Equipment |
| Textile Machinery |
| Pneumatic Equipment |
| Mechanical Handling and Lifting Equipment |
| Industries |
|---|
| Agriculture Industry |
| Textile Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Medical Industry |
