GGB-DP4®

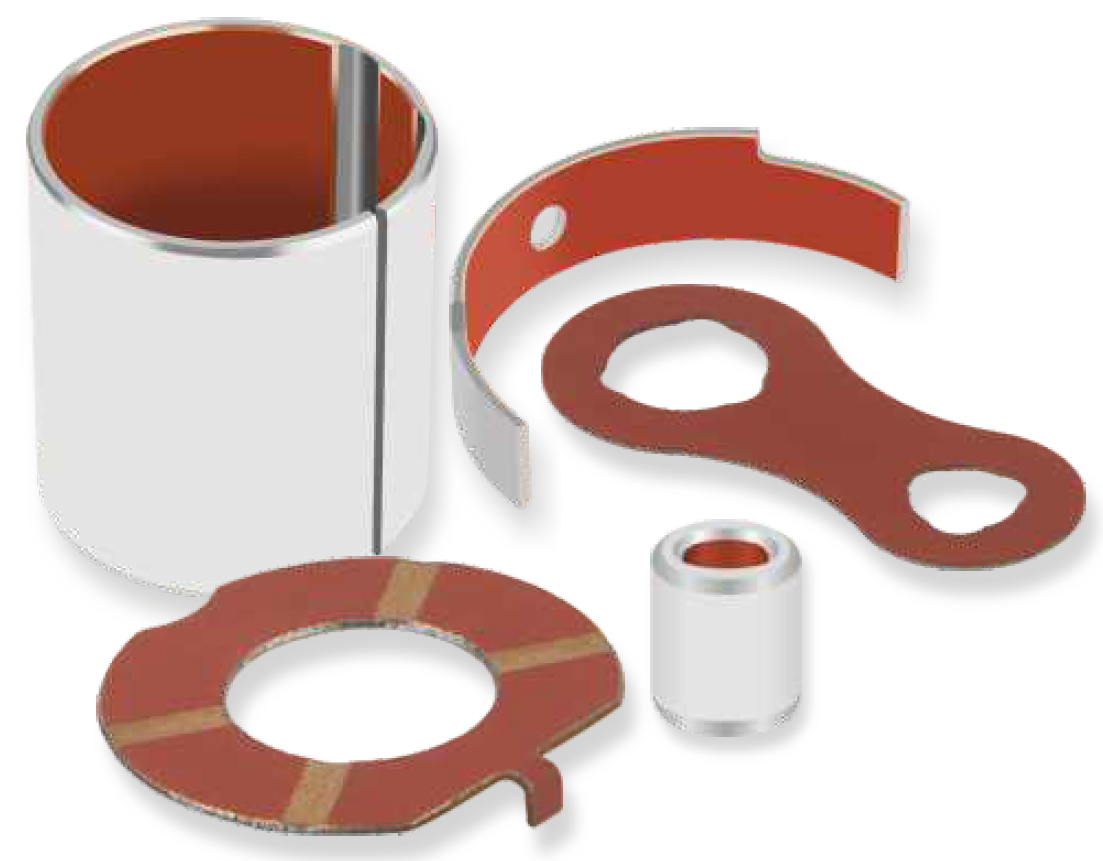

"GGB-DP4® are Metal-Polymer Low Friction Plain Bearings available as Cylindrical bushes, flanged bushes, thrust washers, flanged washers and sliding plates as standard.Standard bushing forms in special dimensions, half-bushings, special shapes obtained
by stamping or deep drawing, bearings with locating
notches, lubricant holes and machined/stamped grooves, customized bushing designs and customized bearing designs are available for made to order purpose."
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 250 N/mm2 |
| Dynamic Load | - | 140 N/mm2 |
| Operating Temperature | -200 °C | 280 °C |
| Sliding Speed Dry | - | 2.5 m/s |
| Sliding Speed Lubricated | - | 5 m/s |
Variant Applications
| Machines / Applications |
|---|
| Braking Systems |
| Agricultural Equipment |
| Steering Systems |
| Medical and Scientific Equipment |
| Railroad and Tramways |
| Packaging Equipment |
| Textile Machinery |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Agriculture Industry |
| Aerospace |
| Food and Beverage Industry |
| Medical Industry |
| Packaging Equipment Manufacturer |
| Textile Equipment Manufacturer |
