GGB-DS

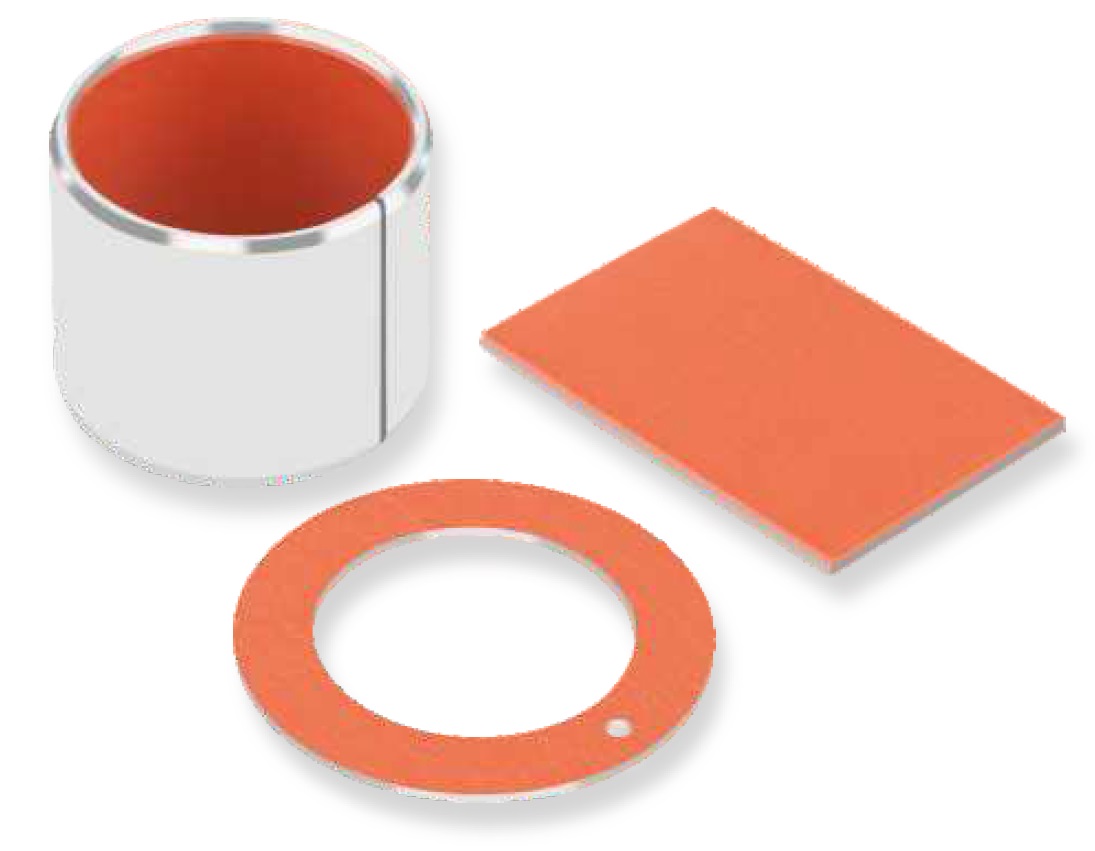

GGB-DS are Metal-Polymer Self-Lubricating Bearings available as Cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping and customized bearing designs for made to order purpose.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 110 N/mm2 |
| Dynamic Load | - | 45 N/mm2 |
| Operating Temperature | -60 °C | 130 °C |
| Sliding Speed Dry | - | 1.5 m/s |
| Sliding Speed Grease Lubricated | - | 2.5 m/s |
| Sliding Speed Oil Lubricated Sliding speed oil | - | 10 m/s |
Variant Applications
| Machines / Applications |
|---|
| Mechanical Handling and Lifting Equipment |
| Medical Equipment |
| Textile Machinery |
| Industries |
|---|
| Automobile Manufacturer |
| Textile Equipment Manufacturer |
| Medical Industry |
| Material Handling Equipment Manufacturer |
