SERIE SMRS 59
The SERIE SMRS 59 is a single turn absolute hollow shaft encoder. The single turn resolution is upto 21 bits and incremental resolution is upto 2048 sin / cos per turn. It has anti-rotation system and protection class IP54.

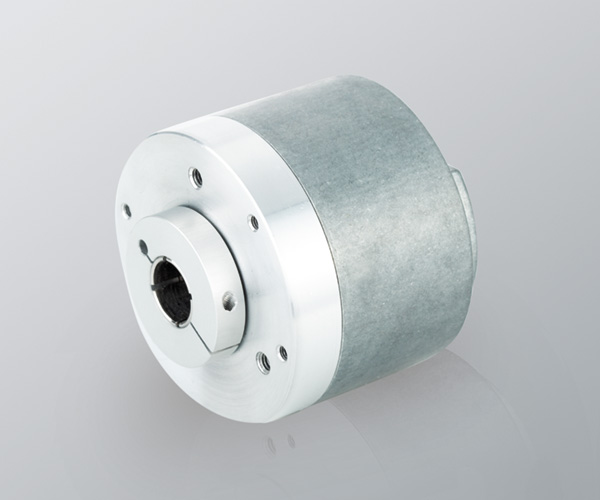

Variant Image

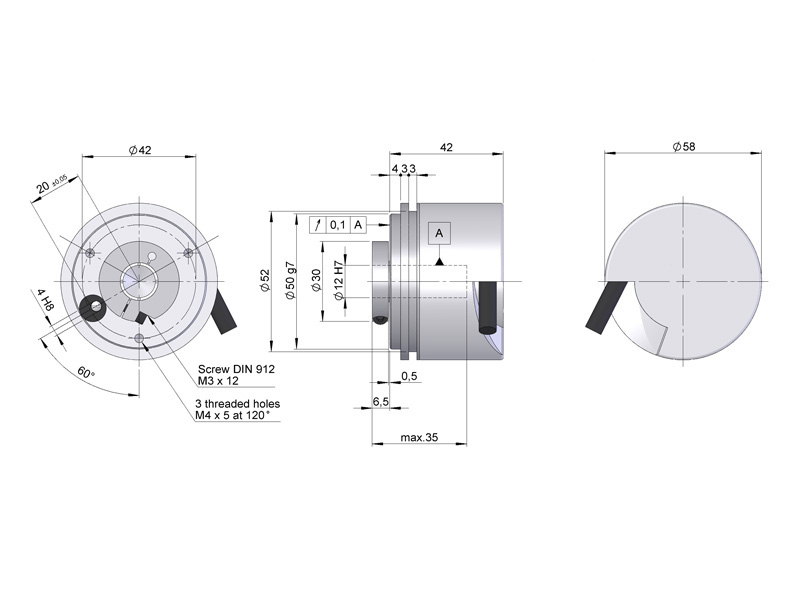

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 10 mm | 12 mm |
| Voltage | 5 VDC | 30 VDC |
| Revolutions | 6000 rpm | |
| Temperature | -10 °C | 100 °C |
Variant Applications
| Machines / Applications |
|---|
| Cranes and Heavy Lifting Equipment |
| Steel Mill |
| Filling And Packaging Machines |
| Industries |
|---|
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Textile Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
