SERIE 20
The SERIE 20 is a solid shaft encoder for industrial applications. It has resolutions upto 1024 PPR. Different flanges are available and it has IP54 rating.

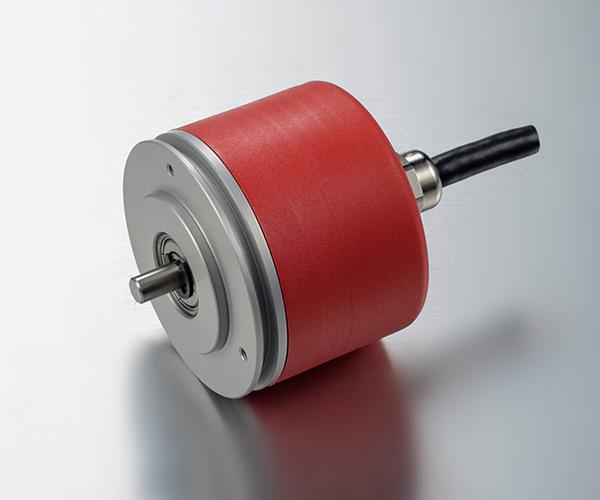

Variant Image

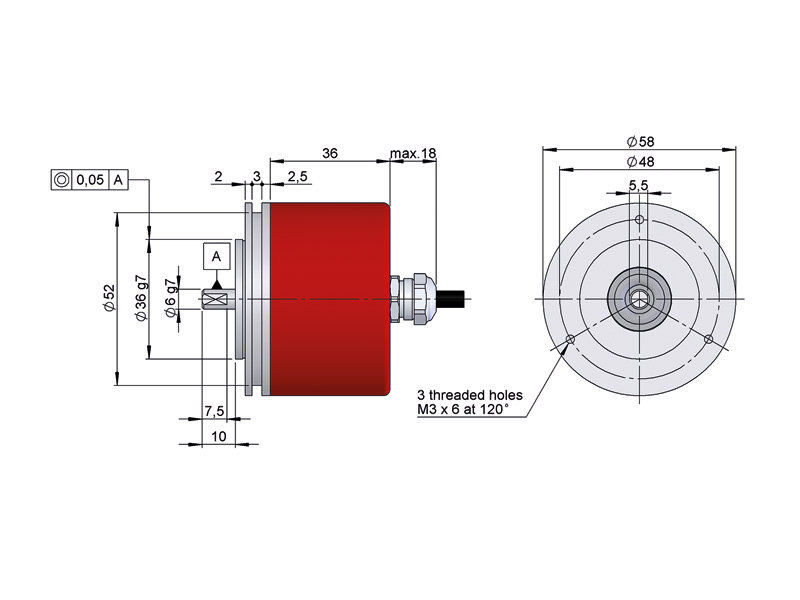

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 6 mm | |
| Voltage | 5 VDC | 30 VDC |
| Revolutions | 6000 rpm | |
| Temperature | -20 °C | 60 °C |
Variant Applications
| Machines / Applications |
|---|
| Cranes and Heavy Lifting Equipment |
| Steel Mill |
| Filling And Packaging Machines |
| Industries |
|---|
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Textile Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
