SERIE 22M
The SERIE 22M is a blind hollow shaft magnetic encoder with resolutions upto 512 PPR. It has anti-rotation system and is vibration and shock resistant. It has IP65 protection class.

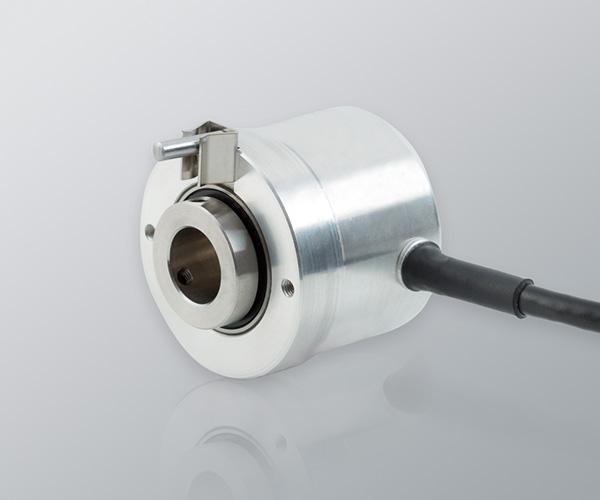

Variant Image

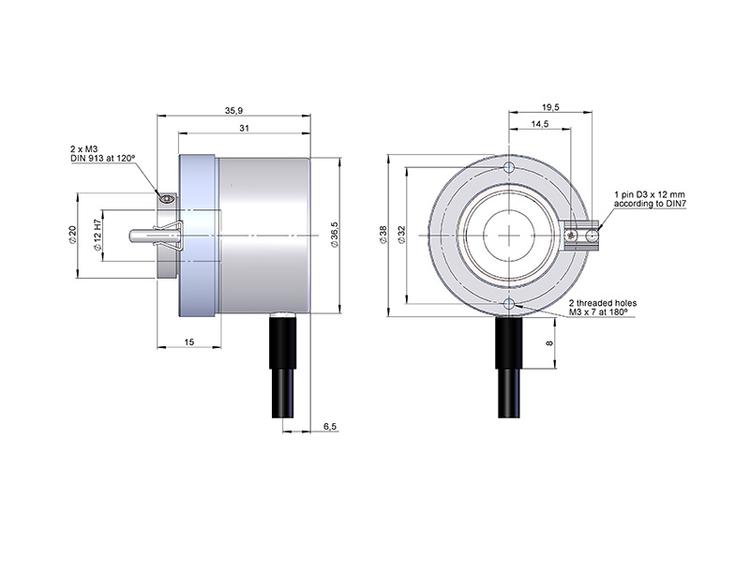

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 10 mm | 12 mm |
| Voltage | 5 VDC | 30 VDC |
| Revolutions | 6000 rpm | |
| Temperature | -20 °C | 85 °C |
Variant Applications
| Machines / Applications |
|---|
| Cranes and Heavy Lifting Equipment |
| Steel Mill |
| Filling And Packaging Machines |
| Industries |
|---|
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Textile Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
SERIE 22M
The SERIE 22M is a blind hollow shaft magnetic encoder with resolutions upto 512 PPR. It has anti-rotation system and is vibration and shock resistant. It has IP65 protection class.
Variant Image

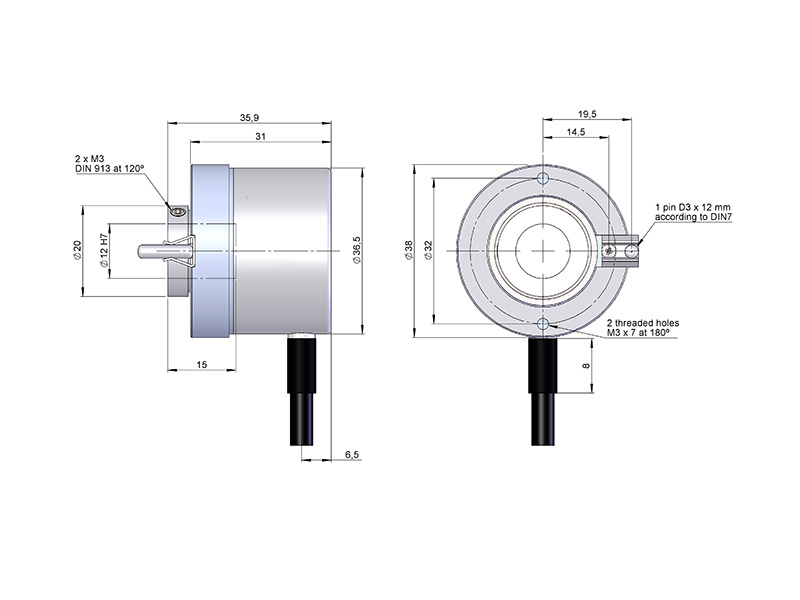

Variant Diagram
