SERIE 80
The SERIE 80 is a hollow shaft optical encoder with resolutions upto 5000 PPR. It is vibration and shock resistant with IP65 protection class. It has anti-rotation system.

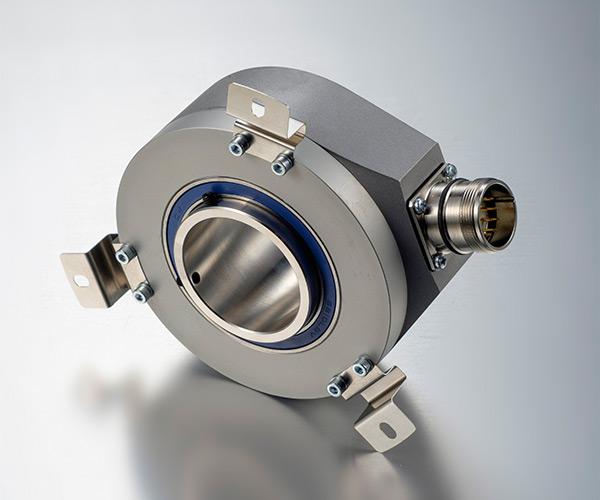

Variant Image

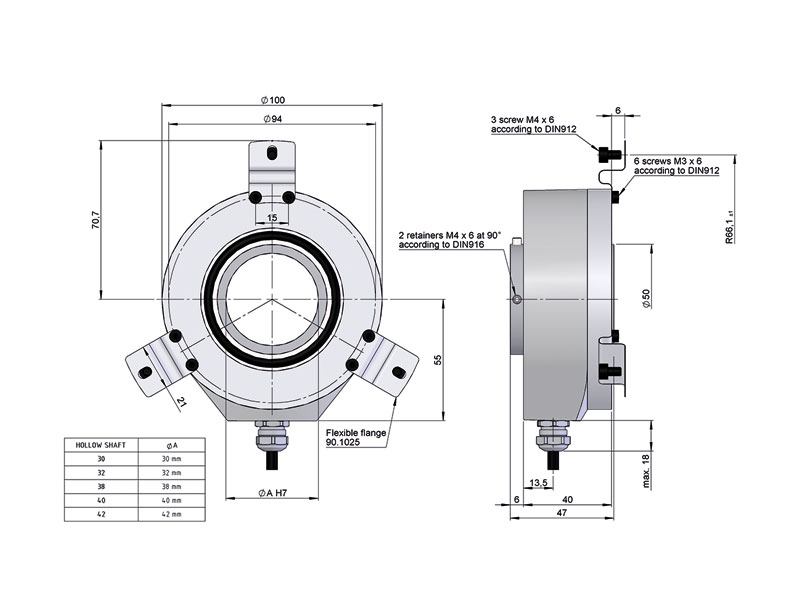

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 30 mm | 42 mm |
| Voltage | 5 VDC | 30 VDC |
| Revolutions | 3600 PPR | |
| Temperature | -20 °C | 80 °C |
Variant Applications
| Machines / Applications |
|---|
| Cranes and Heavy Lifting Equipment |
| Steel Mill |
| Filling And Packaging Machines |
| Industries |
|---|
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Textile Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
