Needle Valve
IBS's Needle Valves which are specifically designed for precision flow control and features a non-rotating needle construction for smooth and accurate regulation. They are available in brass or stainless steel, with a fluor rubber (FKM) seal as standard, assuring compatibility with gases and liquids. These valves can withstand an operational pressure of up to 1.0 MPa and a proof pressure of 1.5 MPa, with operating temperatures varying by material: up to 60°C for brass and 120°C for stainless steel. Flareless tube fittings are only available for stainless steel variants, providing installation flexibility and making these valves appropriate for a wide range of industrial applications.

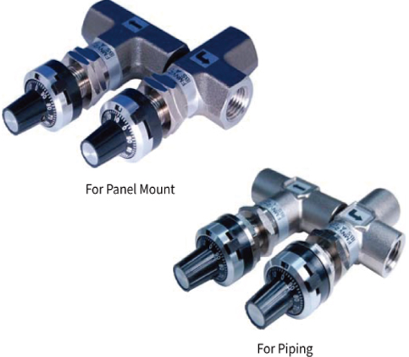

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Operation fluid | - | Gases / liquids that do not corrode wetted parts |
| Pipe size | - | Rc 1/4 (Standard) |
| Operation pressure | - | 1.0 MPa |
| Proof pressure | - | 1.5 MPa |
| Operation Fluid Range | - | Brass：0～60℃（FKM) / SUS：0～120℃（FKM） |
| Body material | - | Brass（Ni plating) / SUS316 |
| Wetted materials | - | Brass, SUS316, PTFE, FKM |
| Knob rotation speed | - | 13 rotations |
| Seal material | - | Fluoro rubber FKM |
Variant Applications
| Machines / Applications |
|---|
| Precise flow control in liquid and gas systems |
| Adjustment of fluid flow rates in laboratory settings |
| Industries |
|---|
| Oil and gas |
| Chemical processing |
| Pharmaceuticals |
| Food and beverage manufacturing |
| Water treatment |
| Aerospace |
| Automotive |
