F600
It is a deep groove ball bearing with an exterior ring flange on one edge. When using this bearing, it is not required to provide a step on the housing's inner bore, making it feasible to accurately process the through hole. It is essential to machine the housing end face's right angle with extreme precision because this bearing is standardly affixed to the end face of the housing.

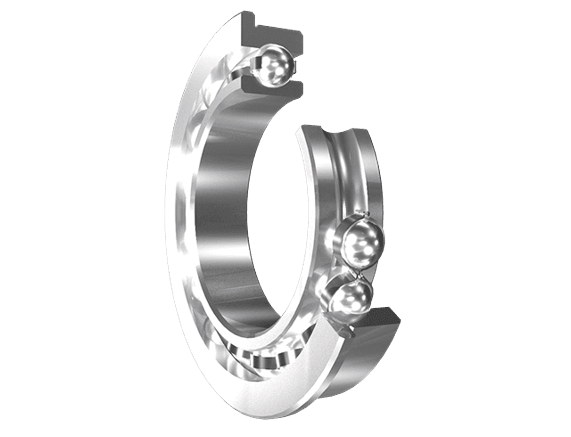

Variant Image

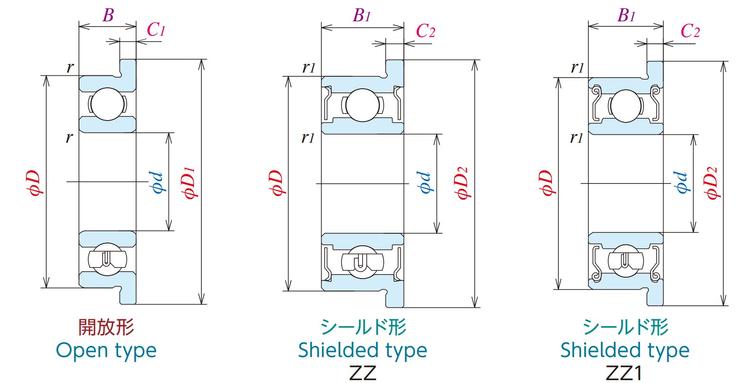

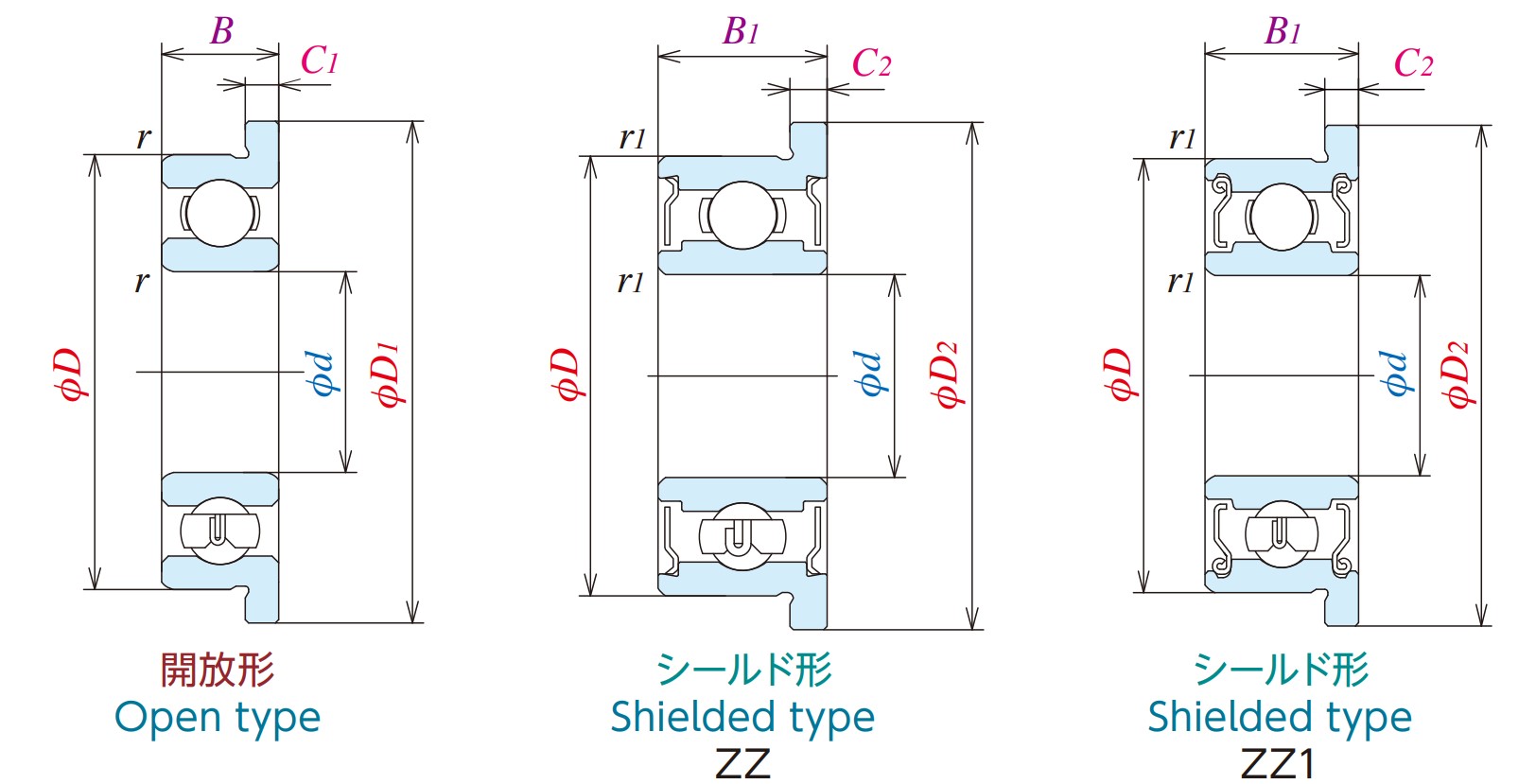

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 1 mm | 9 mm |
| Outside Diameter | 3 mm | 25 mm |
| Outer ring Flange Diameter | 3.8 mm | 25 mm |
| Width | 1 mm | 7 mm |
| Static Load | 23 N | 1370 N |
| Dynamic Load | 80 N | 3300 N |
Variant Applications
| Machines / Applications |
|---|
| Steering systems |
| Dental tools |
| Printing presses |
| Toys |
| Electronic tools |
| Surgical instruments |
| Wheel hub |
| Aircraft engines |
| Industries |
|---|
| Medical |
| Automotive |
| Aerospace |
| Robotics |
| Agriculture |
