FRW series
It is an inch-sized deep groove ball bearing with an exterior ring flange on one edge and interior ring that is 1/64 of an inch broader on both sides than the outer ring, or 0.397mm. Utilizing this bearing simplifies the assembly and building of the bearing.

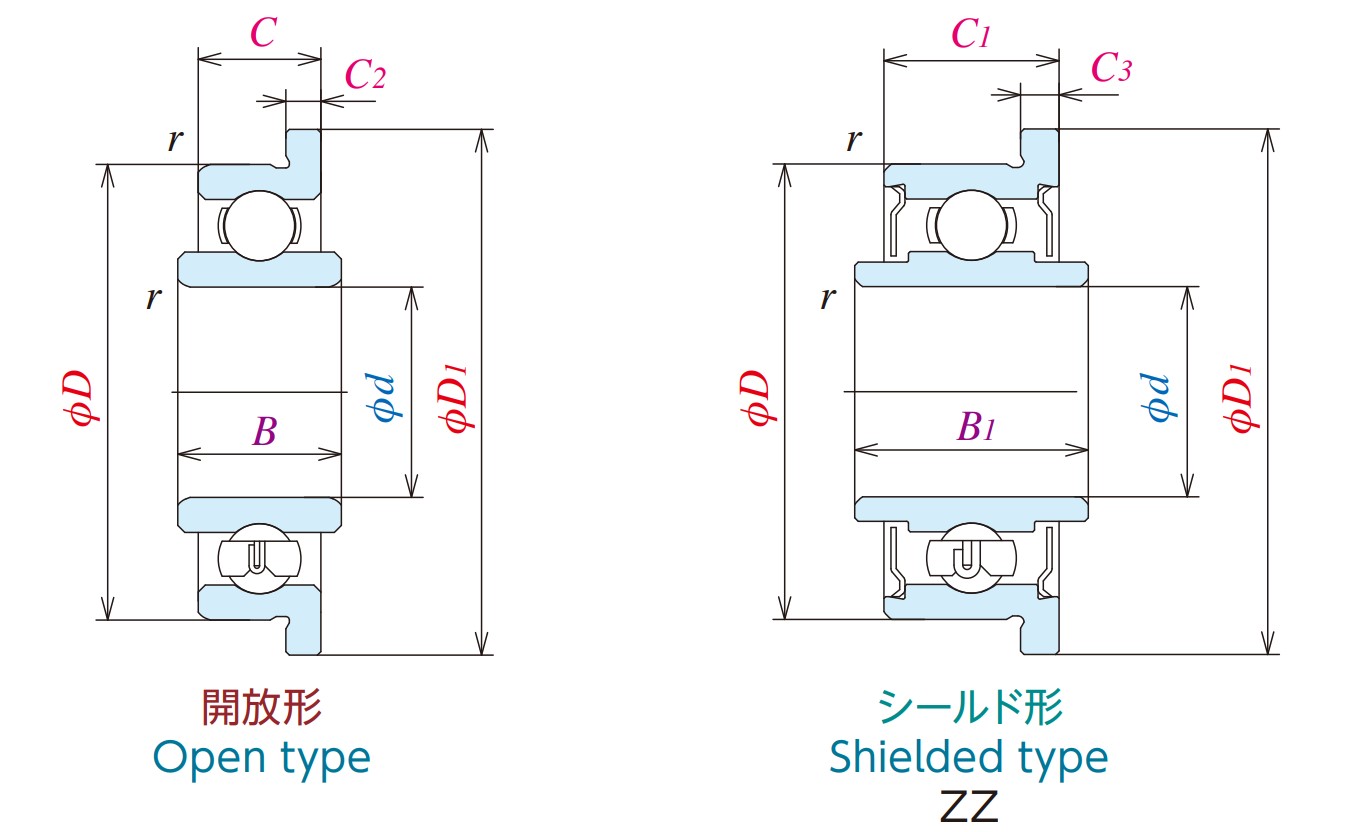

Variant Diagram

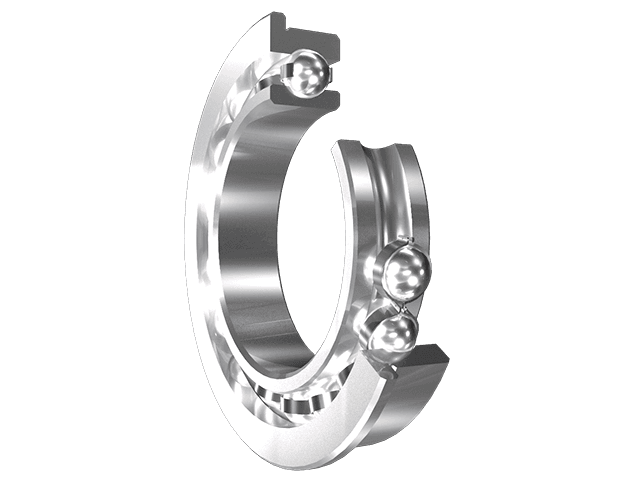

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 1.191 mm | 7.938 mm |
| Outside Diameter | 3.967 mm | 15.875 mm |
| Outer ring Flange Diameter | 5.156 mm | 17.526 mm |
| Width | 1.588 mm | 4.978 mm |
| Inner ring width | 2.380 mm | 5.771 mm |
| Static Load | 35 N | 660 N |
| Dynamic Load | 138 N | 1610 N |
Variant Applications
| Machines / Applications |
|---|
| Medical |
| Automotive |
| Aerospace |
| Robotics |
| Agriculture |
| Industries |
|---|
| Bore Diameter |
| Outside Diameter |
| Outer ring Flange Diameter |
| Width |
| Inner ring width |
| Static Load |
| Dynamic Load |
FRW series
It is an inch-sized deep groove ball bearing with an exterior ring flange on one edge and interior ring that is 1/64 of an inch broader on both sides than the outer ring, or 0.397mm. Utilizing this bearing simplifies the assembly and building of the bearing.
Variant Diagram

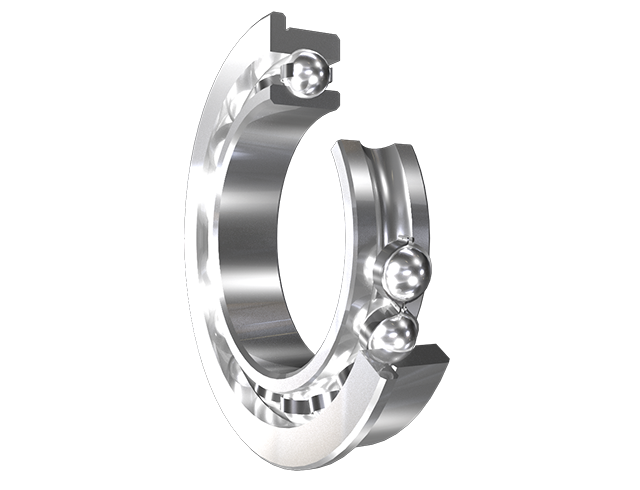

Variant Image
