RW series
It is a deep groove ball bearing of the inch variety, with an inner ring that is 0.397mm (1/64 inch) wider on both sides than the exterior ring. The construction of the bearing and assemblage is made simpler by using this bearing.

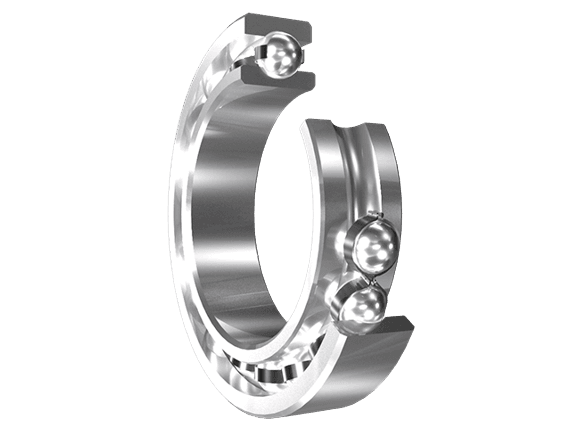

Variant Image

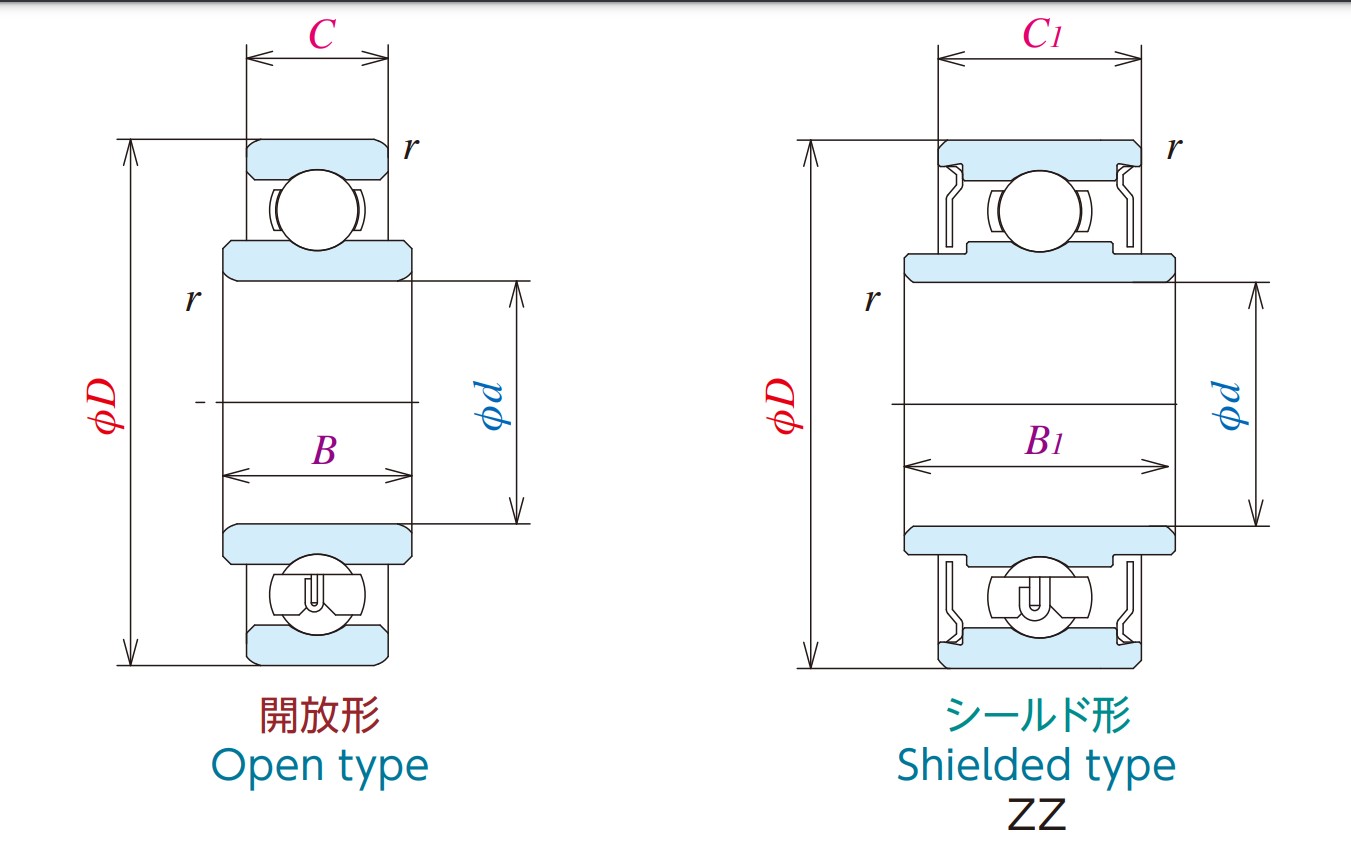

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 1.016 mm | 7.938 mm |
| Outside Diameter | 3.175 mm | 12.7 mm |
| Width | 1.191 mm | 4.978 mm |
| Inner ring width | 1.984 mm | 5.711 mm |
| Static Load | 23 N | 660 N |
| Dynamic Load | 80 N | 1610 N |
Variant Applications
| Machines / Applications |
|---|
| Steering systems |
| Dental tools |
| Printing presses |
| Toys |
| Electronic tools |
| Surgical instruments |
| Wheel hub |
| Aircraft engines |
| Industries |
|---|
| Medical |
| Automotive |
| Aerospace |
| Robotics |
| Agriculture |
RW series
It is a deep groove ball bearing of the inch variety, with an inner ring that is 0.397mm (1/64 inch) wider on both sides than the exterior ring. The construction of the bearing and assemblage is made simpler by using this bearing.

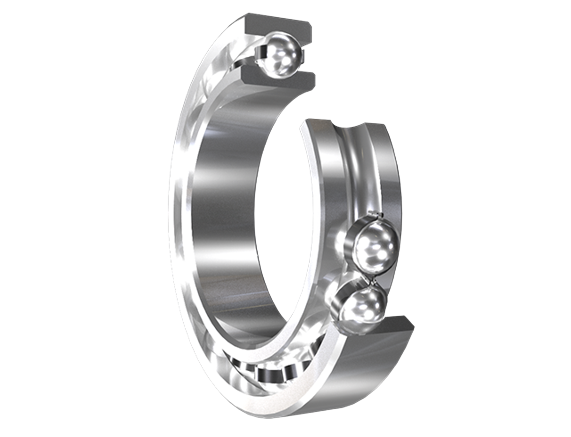

Variant Image

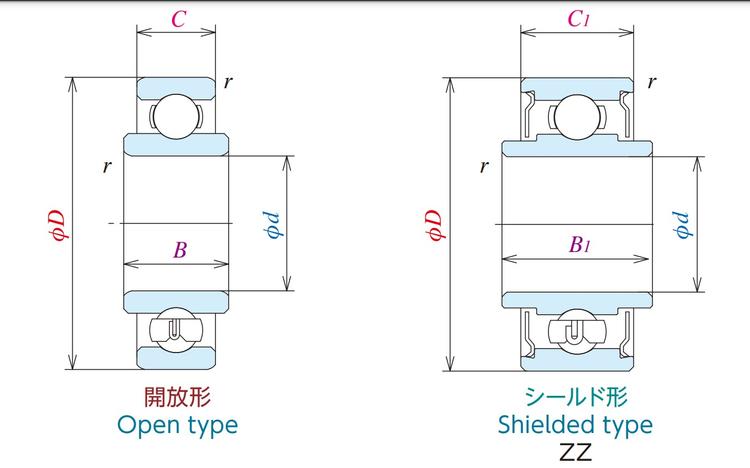

Variant Diagram
