Series 600
Radial ball bearings with a circular arc cross-section and a radius that is a little bit bigger than the radius of the moving ball make up the raceway grooves in the inner and outer rings. Axial weight can be applied in both directions in addition to radial load. Small friction torque makes it ideal for uses needing high-speed spinning and minimal vibration and noise.

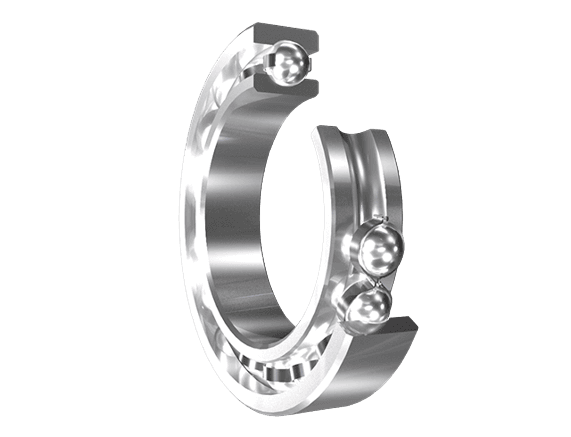

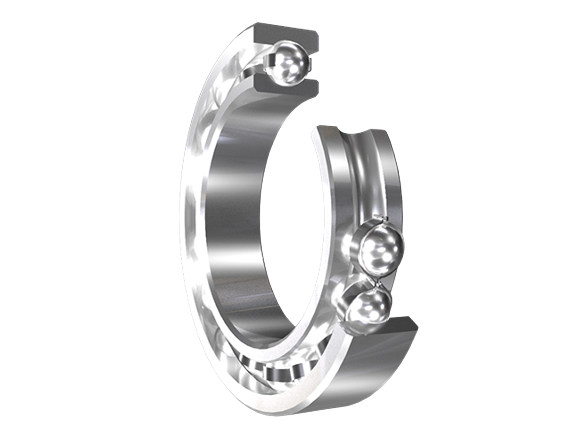

Variant Image

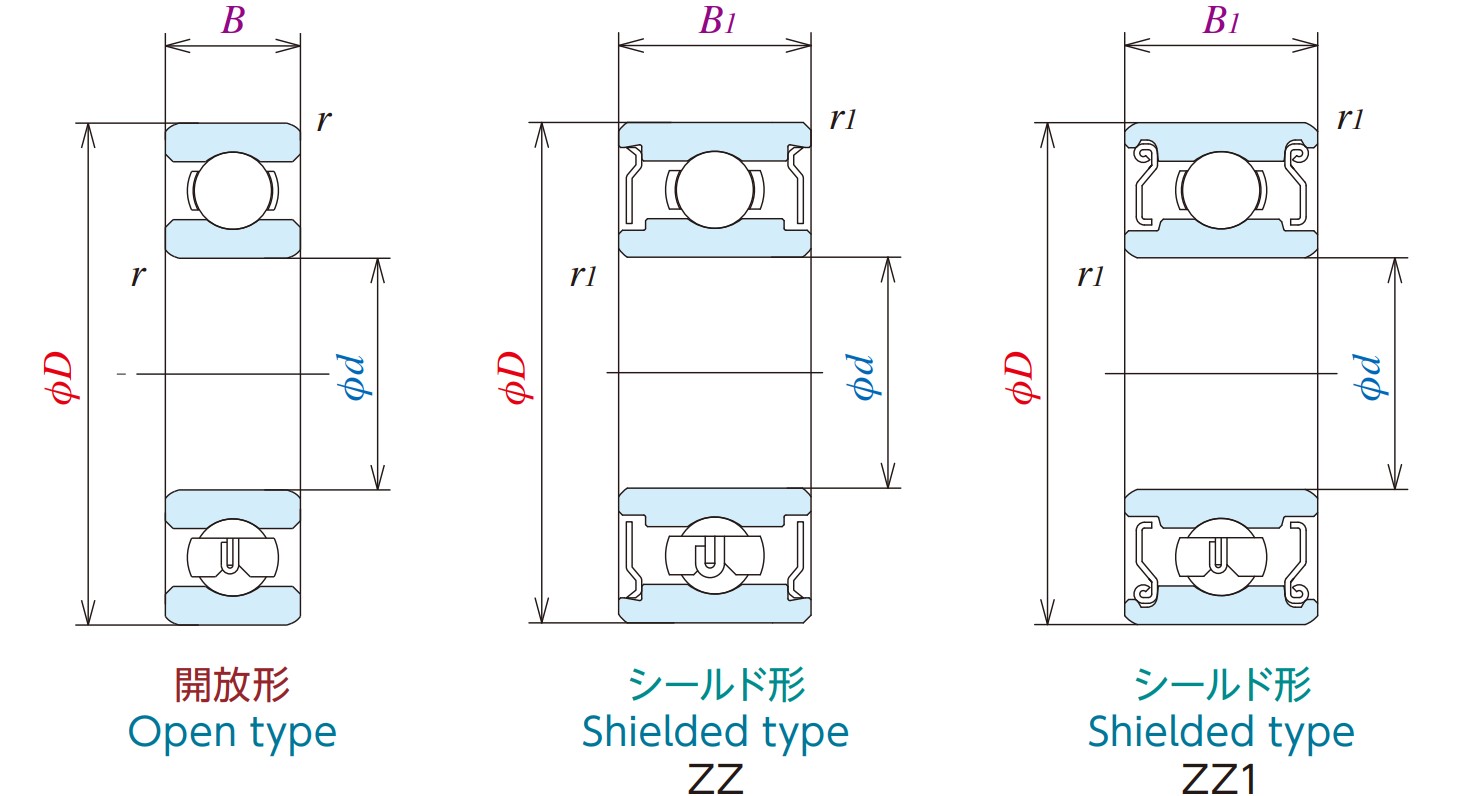

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 1 mm | 9 mm |
| Outside Diameter | 3 mm | 26 mm |
| Width | 1 mm | 9 mm |
| Static Load | 23 N | 1970 N |
| Dynamic Load | 80 N | 4550 N |
Variant Applications
| Machines / Applications |
|---|
| Steering systems |
| Dental tools |
| Printing presses |
| Toys |
| Electronic tools |
| Surgical instruments |
| Wheel hub |
| Aircraft engines |
| Industries |
|---|
| Medical |
| Automotive |
| Aerospace |
| Robotics |
| Agriculture |
