SMT series
A deep groove ball bearing with an exterior diameter to interior diameter ratio that is lower than usual. The dimension and weight of the apparatus can be decreased by using this bearing.

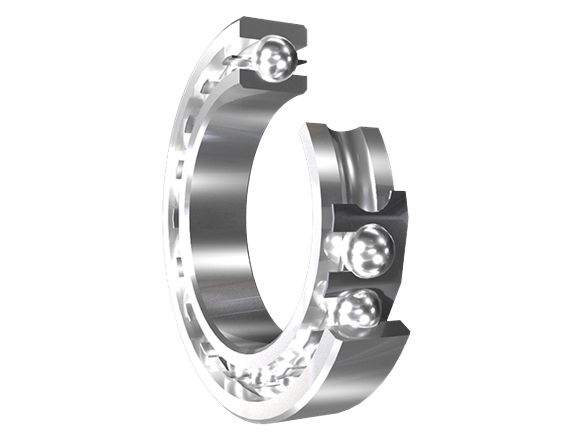

Variant Image

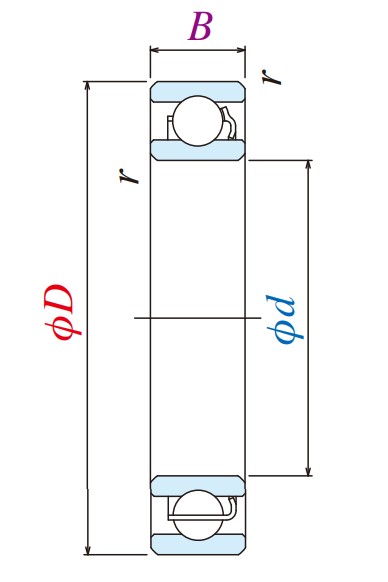

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 10 mm | 15 mm |
| Outside Diameter | 15 mm | 20 mm |
| Width | 3 mm | 3.5 mm |
| Static Load | 410 mm | 470 mm |
| Dynamic Load | 800 mm | 815 mm |
Variant Applications
| Machines / Applications |
|---|
| Steering systems |
| Dental tools |
| Printing presses |
| Toys |
| Electronic tools |
| Surgical instruments |
| Wheel hub |
| Aircraft engines |
| Industries |
|---|
| Medical |
| Automotive |
| Aerospace |
| Robotics |
| Agriculture |
SMT series
A deep groove ball bearing with an exterior diameter to interior diameter ratio that is lower than usual. The dimension and weight of the apparatus can be decreased by using this bearing.

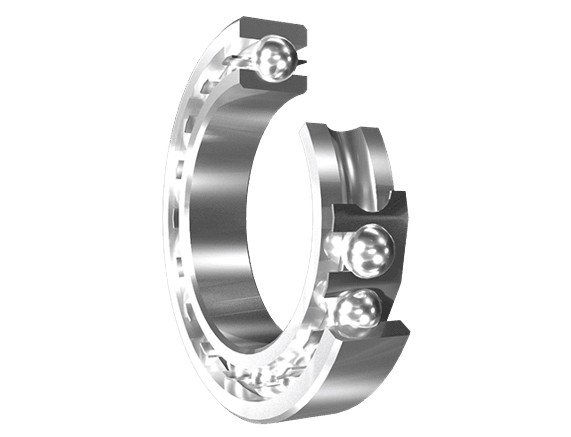

Variant Image

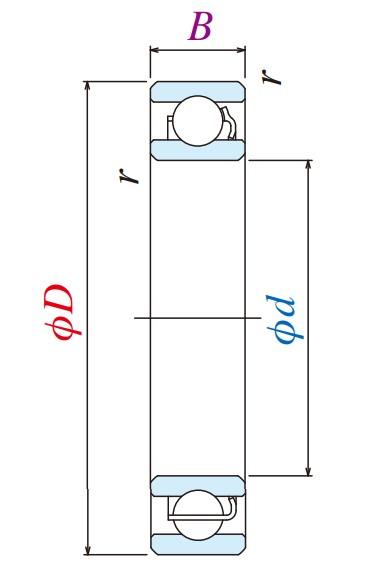

Variant Diagram
