F Series
It comprises of a retainer with a ball and a planar bearing gasket without a raceway gap. Only radial loads can be loaded in a single plane. There is little contact force. applicable to spinning at moderate speeds.

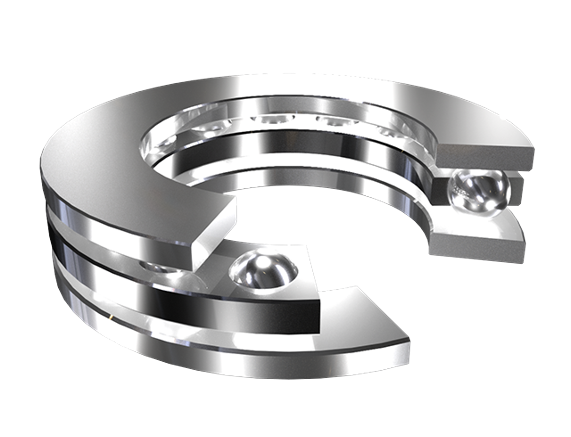

Variant Image

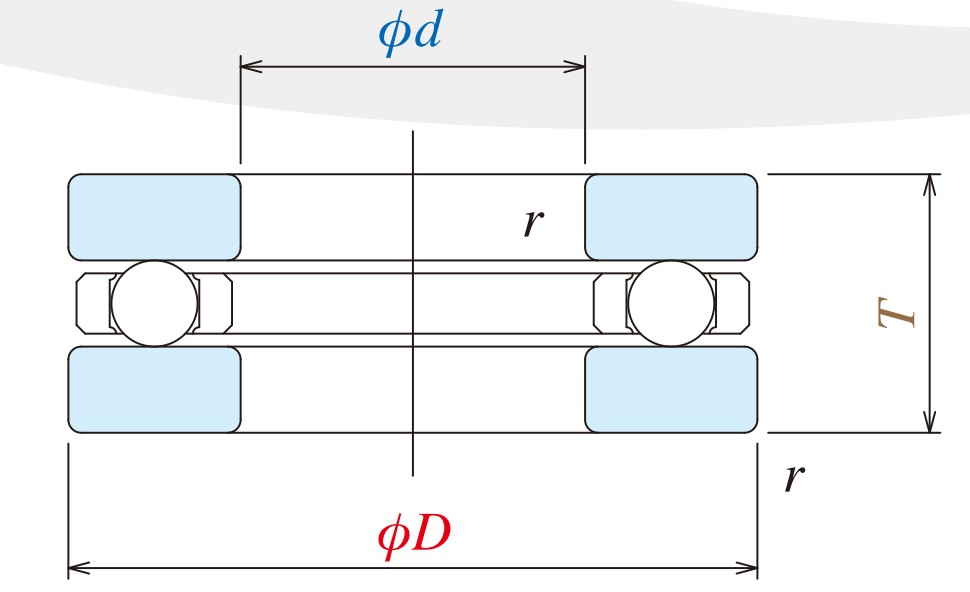

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 2 mm | 10 mm |
| Outside Diameter | 6 mm | 18 mm |
| Width | 3 mm | 5.5 mm |
| Static Load | 44 N | 380 N |
| Dynamic Load | 151 N | 860 N |
Variant Applications
| Machines / Applications |
|---|
| Steering systems |
| Dental tools |
| Printing presses |
| Toys |
| Electronic tools |
| Surgical instruments |
| Wheel hub |
| Aircraft engines |
| Industries |
|---|
| Medical |
| Automotive |
| Aerospace |
| Robotics |
| Agriculture |
F Series
It comprises of a retainer with a ball and a planar bearing gasket without a raceway gap. Only radial loads can be loaded in a single plane. There is little contact force. applicable to spinning at moderate speeds.

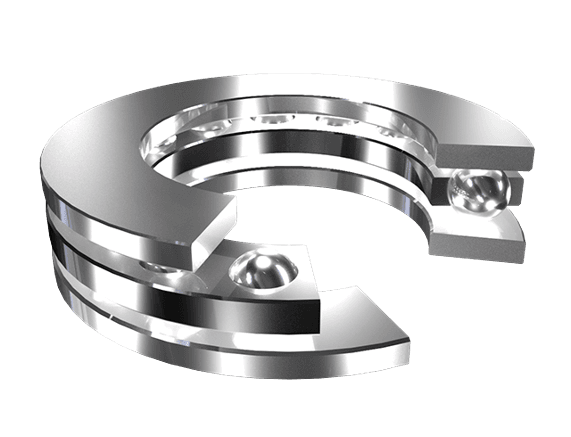

Variant Image
