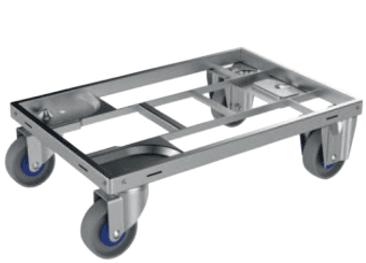

Lean Dolly Type-I And II
The Lean Dolly Type I and II are lightweight dollies made of steel with high-quality blue zinc coating, making them ideal for lean manufacturing processes. Their typical wheels have a diameter of 100mm and can support up to 250kg each. They are available in a variety of wheel styles and materials. The dollies' quiet, smooth wheels provide for safe transportation in crowded work environments. When not in use, they are having stackable compact design which optimizes floor space.
[Accessories/options available :-
1. Ergonomic handle.
2. Strapping device.
3. Oil dripping pan.
4. RFID.
5. Total brake on 1 or 2 swivel wheels.
6. Corner support.
7. ESD compatibility.]
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| External Dimensions(mm) | - | 600X400X162mm |
| Tare Weight(kg) | - | 6.5(kg) |
| Frame Material | - | Structural Steel |
| Wheel size(mm) | - | 100(mm) |
| Wheel Type(Fixed and swiel ) | - | For type I -2 fixed 2swivel & For type II - All swivel |
| Wheel Material | - | CPD, Rubber or PU |
| Tray size | 300X200 | 600X400 |
| Safe Stacking | - | 15 Units |
Variant Applications
| Machines / Applications |
|---|
| Manufacturing |
| Warehousing |
| Assembly Lines |
| Distribution Centers |
| Material Handling |
| Inventory Management |
| Industries |
|---|
| Automotive |
| Retail |
| Electronics |
| Consumer Goods |
| Aerospace |
| Pharmaceuticals |
| Logistics |
