QuickTrax Cable Carrier
Kabelschlepp QuickTrax Cable Carriers are most widely used in all types of CNC machines, robotics machines, cranes, etc due to its properties like economically cost-effective, very easy and quick assembly, high torsional rigidity, noiseless working due to noise damping system, immediate availability of all types of Kabelschlepp cable carrier/ drag chain in India.

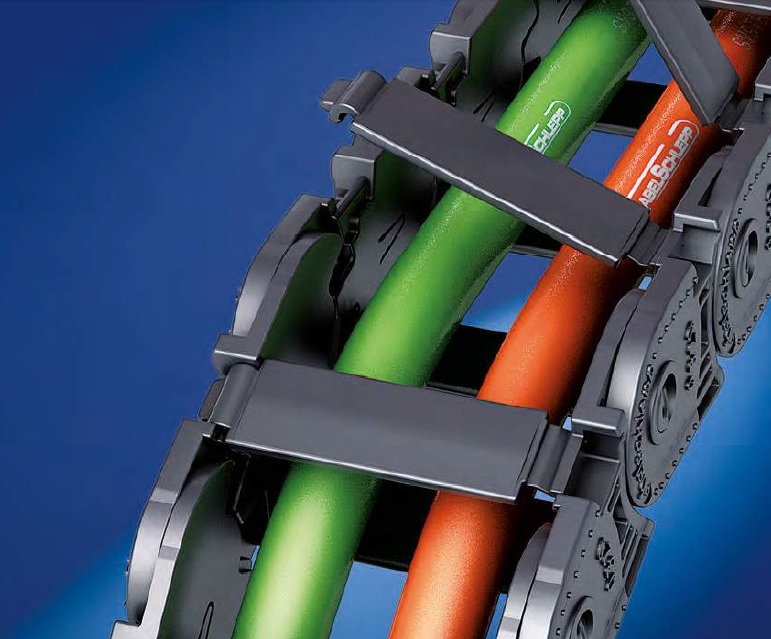

Variant Image

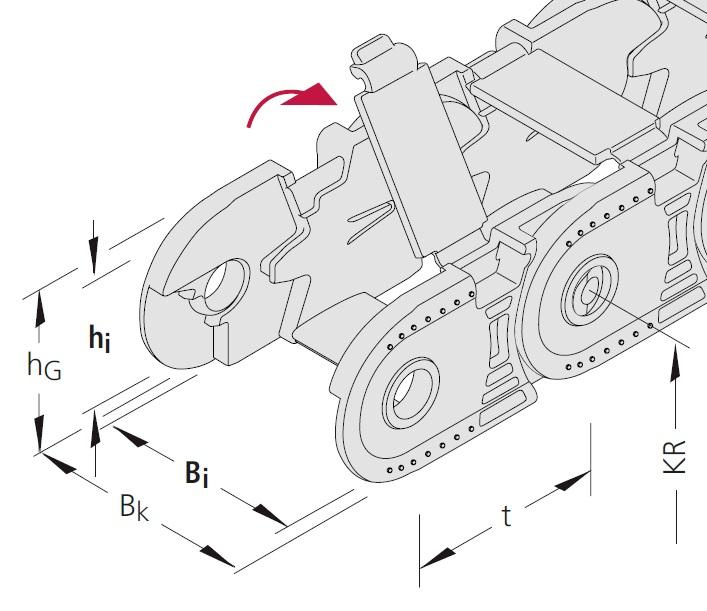

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Inside Height | 20 mm | 20 mm |
| Inside Width | 15 mm | 65 mm |
| Bending Radius | 28 mm | 125 mm |
| Max. Travel Length | 80 M | 80 M |
Variant Applications
| Machines / Applications |
|---|
| Roll Neck Milling Machine-Rottler Werkzeugmaschinen GmbH |
| Wood Processing Machine-Krüsi Maschinenbau AG |
| Industries |
|---|
| Machine Tool Manufacturer |
| Aerospace |
| Oil, Gas Exploration & Refinery |
| Medical and Laboratory Technologies |
| Industrial Robots |
