UNIFLEX Cable Carrier
Kabelschlepp UNIFLEX Cable Carriers are most widely used in all types of CNC machines, robotics machines, cranes, etc due to its properties like economically cost-effective, very easy and quick assembly, high torsional rigidity, noiseless working due to noise damping system, immediate availability of all types of Kabelschlepp cable carrier/ drag chain in India.

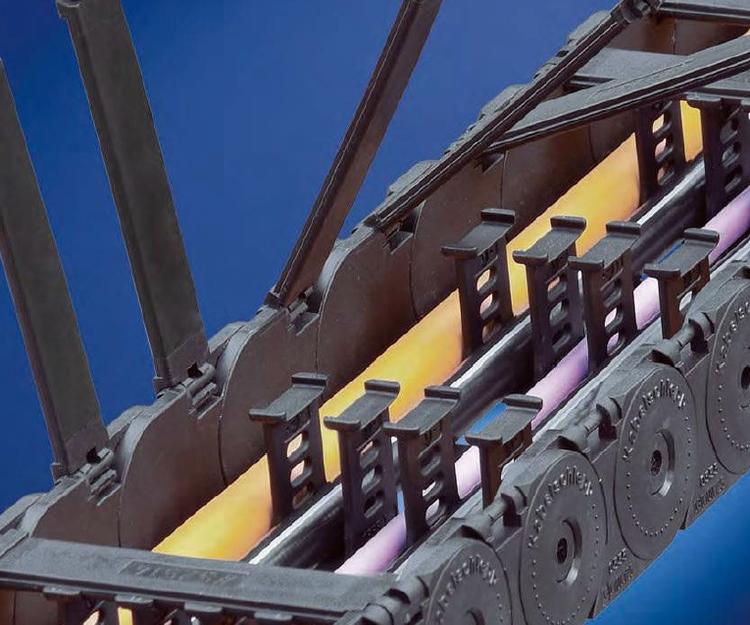

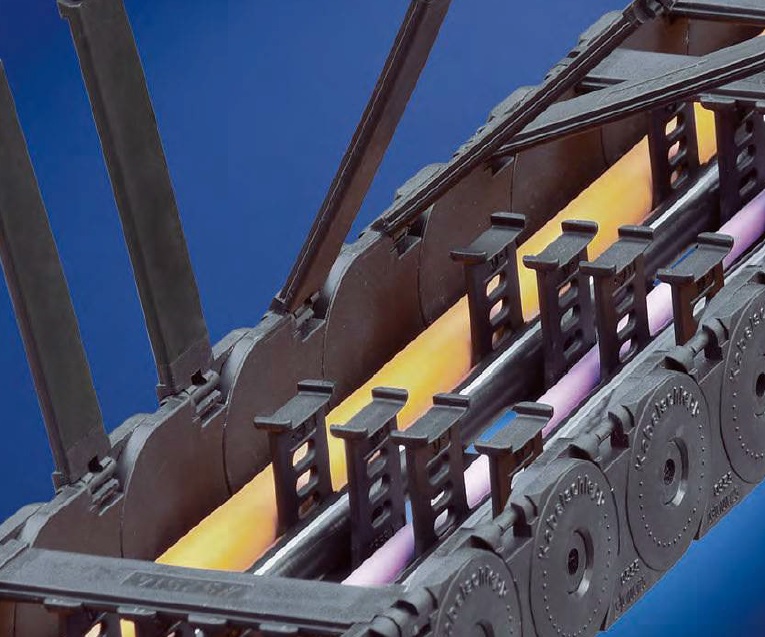

Variant Image

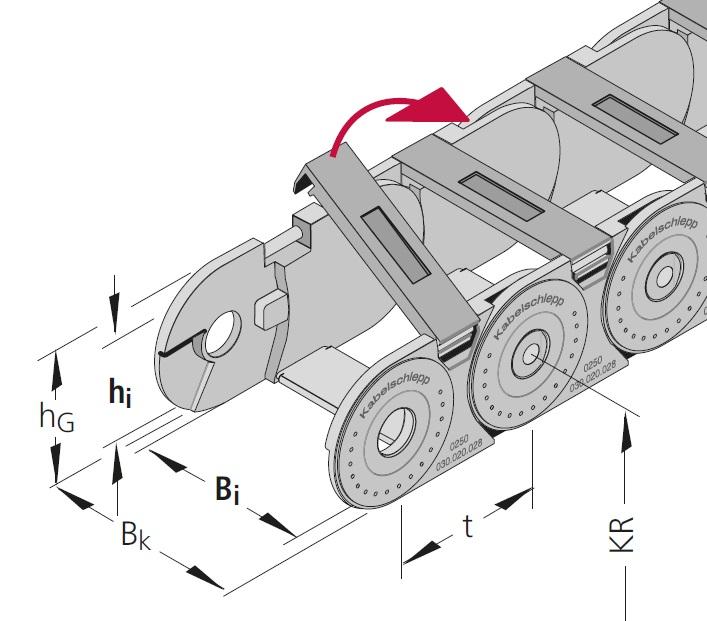

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Inside Height | 17.5 mm | 44 mm |
| Inside Width | 15 mm | 175 mm |
| Bending Radius | 28 mm | 300 mm |
| Max. Travel Length | 60 M | 150 M |
Variant Applications
| Machines / Applications |
|---|
| CNC-Machining Center-Reichenbacher GmbH |
| Automatic Window Frame Setting Station-Lenhard Maschinenbau GmbH |
| Reis Robotics Machine |
| Automatic Wood Processing Machine-Homag Holzbearbeitungssysteme AG |
| Scissored Coil Lift-Grundei Hebetische Verladetechnik GmbH |
| Industries |
|---|
| Machine Tool Manufacturer |
| Aerospace |
| Oil, Gas Exploration & Refinery |
| Medical and Laboratory Technologies |
| Industrial Robots |
