MOBIFLEX Cable Carrier
Kabelschlepp MOBIFLEX Cable Carrier (STEEL-LINE) is used in CNC drilling machines, laser cutting machines, steel industries etc. It has properties such as very robust and stable steel chains used for heavy loads and harsh environmental conditions, suitable for very long unsupported lengths as well as large additional loads, availability of different types in different dimensions, covers with the aluminum cover system or steel strip.

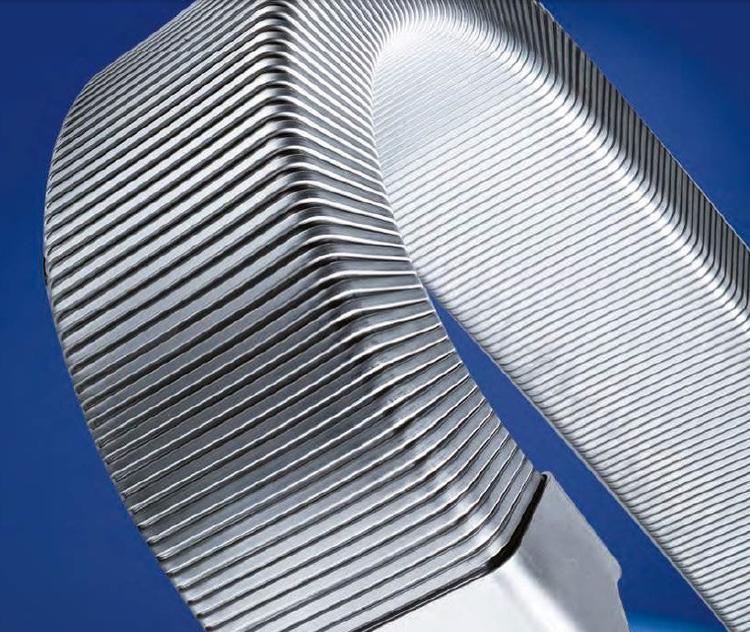

Variant Image

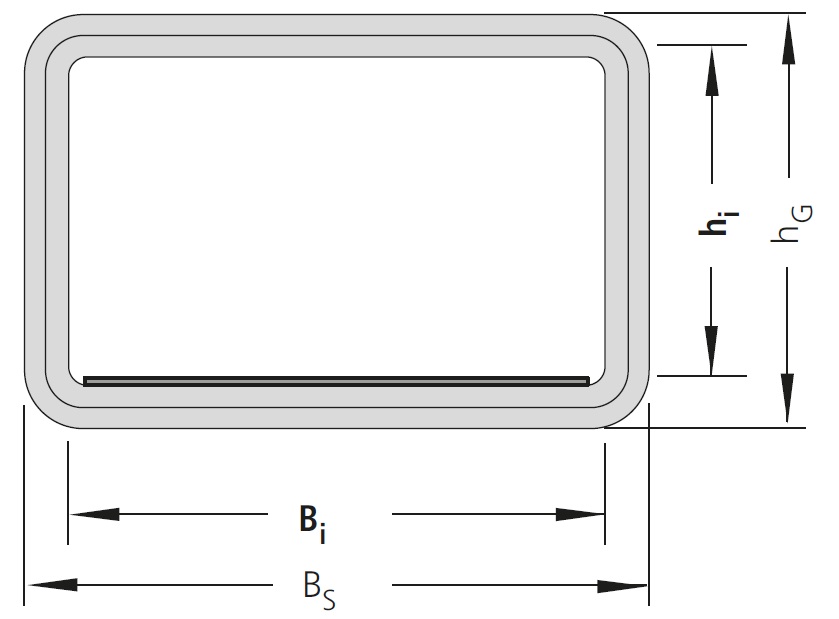

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Inside Height | 24 mm | 167 mm |
| Inside Width | 26 mm | 170 mm |
| Bending Radius | 75 mm | 365 mm |
| Max. Travel Length | 3 M | 5 M |
Variant Applications
| Machines / Applications |
|---|
| CNC Drilling Machine-Rottler Rottler Werkzeugmaschinen GmbH |
| Scissored Coil Lift- SÜDO GmbH |
| Laser Cutting Machine-Meyer Werft GmbH |
| Industries |
|---|
| Machine Tool Manufacturer |
| Aerospace |
| Oil, Gas Exploration & Refinery |
