TKC91 Cable Carrier
Kabelschlepp TKC91 Cable Carrier is mostly used in CNC machines due to its properties such as chips & dirt resistant, high torsional rigidity, highly wear resistant, standard universal mounting brackets with strain relief, etc. Immediate stock of TKC91 Cable Carrier is available in India.

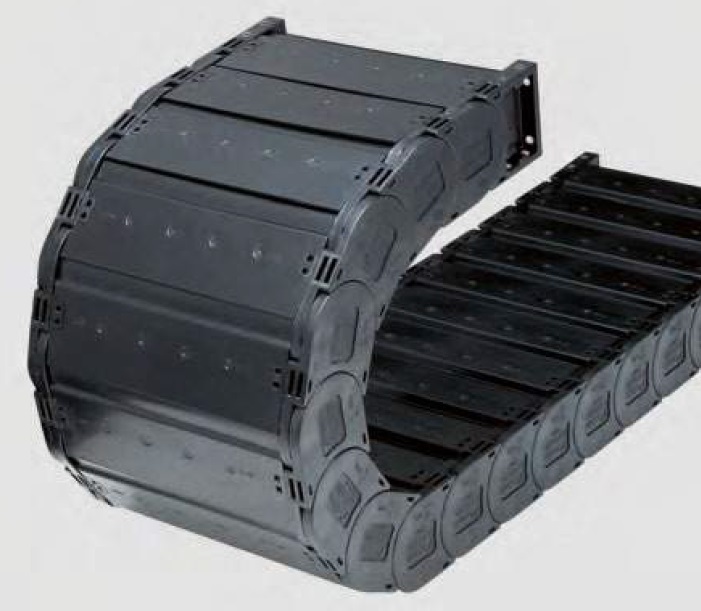

Variant Image

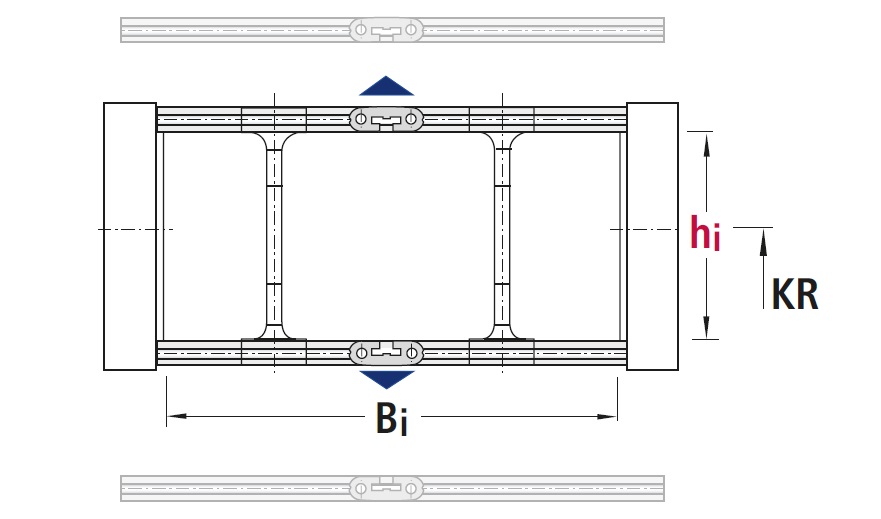

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Inside Height | 56 mm | 80 mm |
| Inside Width | 150 mm | 400 mm |
| Bending Radius | 200 mm | 500 mm |
| Max. Travel Length | 80 M | 100 M |
Variant Applications
| Machines / Applications |
|---|
| MAKINO HMC - MCB1210 |
| Toss Machine (Check Make-Slovakia) |
| Industries |
|---|
| Machine Tool Manufacturer |
| Aerospace |
| Oil, Gas Exploration & Refinery |
| Medical and Laboratory Technologies |
| Robotics |
