K Series Cable Carrier
Kabelschlepp K Series Cable Carrier is used when we require to place cables of different sizes separately. This cable carrier is mostly used for clean room applications because of its properties such as dirt/contamination free, low intrinsic weight, easy to assemble, Long service life, etc.

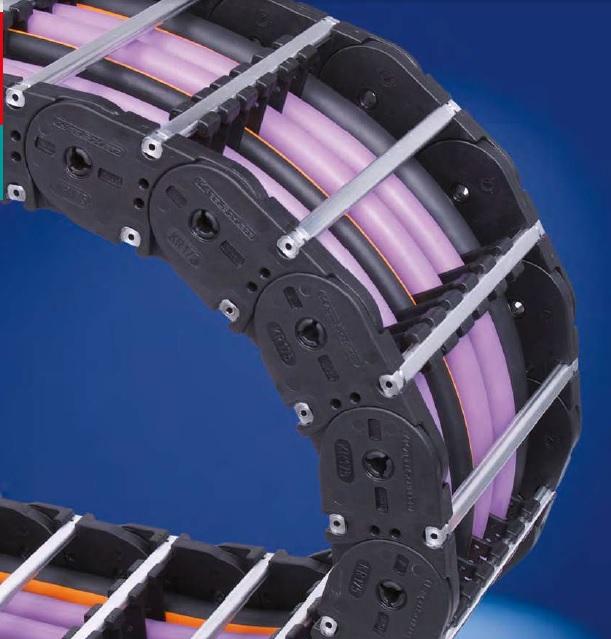

Variant Image

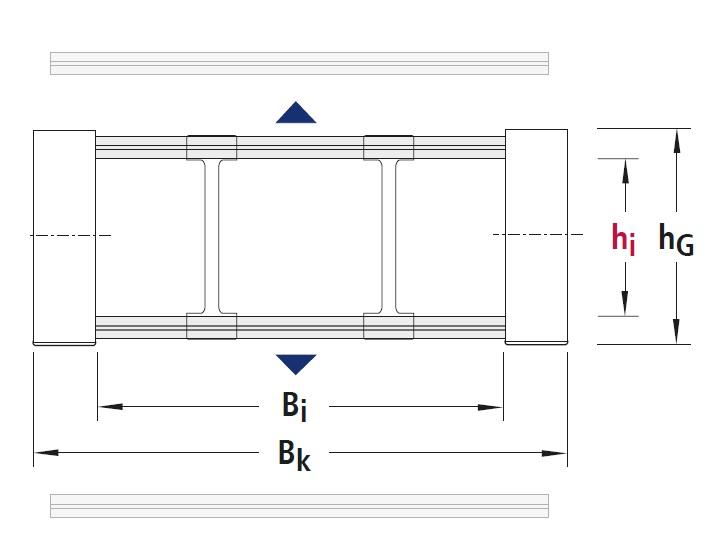

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Inside Height | 38 mm | 58 mm |
| Inside Width | 68 mm | 561 mm |
| Bending Radius | 75 mm | 385 mm |
| Max. Travel Length | 220 M | 260 M |
Variant Applications
| Machines / Applications |
|---|
| Laser cutting machine-Soudronic AG Automotive |
| Industries |
|---|
| Machine Tool Manufacturer |
| Aerospace |
| Oil, Gas Exploration & Refinery |
| Medical and Laboratory Technologies |
| Robotics |
