BRUSHLESS SYSTEM (HAND HELD) (Portable steam cleaner for flat belts (without tray))

This handheld variant of the Brushless System follows the same cleaning principle as the standard model but is manually held against the moving conveyor belt by the operator, cleaning in strips based on the device’s width. It’s ideal for short conveyor belts of varying widths and in spaces with limited overhang where tray-mounted options aren’t suitable. Additionally, it can be used to clean the product contact side of modular flat top belts. When paired with KHD steam generators, built-in switches ensure steam is released only when the cleaner is in contact with the belt, maximizing efficiency and safety. Features: 1) Portable and very quick to set up, 2) Easy to clean, 3) Integrated switches for safe steam control, 4) Sanitises without resorting to chemicals. 5) FDA approved belt contact materials, 6) Wet vacuum with 38mm hose required.

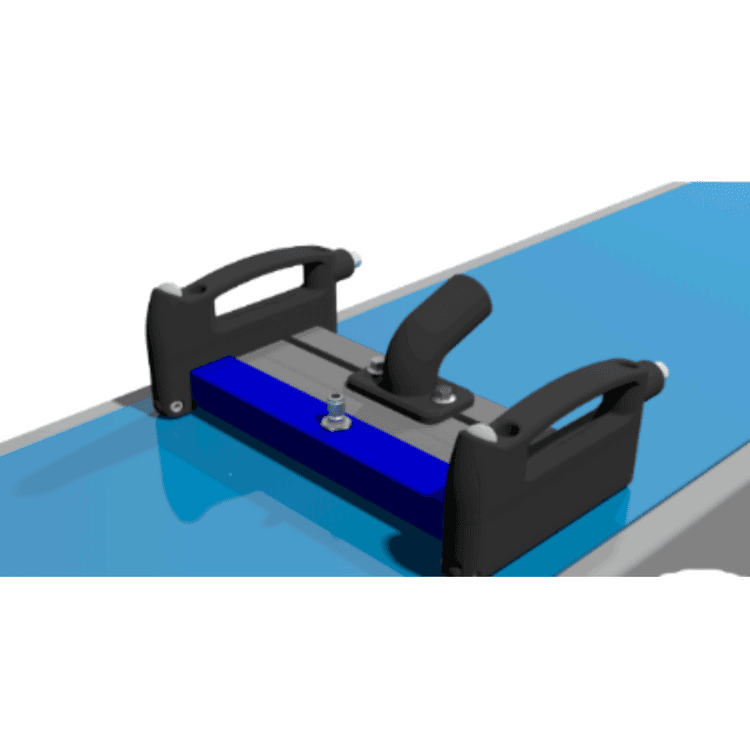

Variant Image
BRUSHLESS SYSTEM (HAND HELD) (Portable steam cleaner for flat belts (without tray))
Selection Parameters
ParametersMinMax
Steam power-9kW to 36kW
Vacuum-Via KHD steam generator
Conveyor sizes-Virtually any size - discuss first with KHD
Steam pressure-Up to 10 Bar
Made to order-Any size in approx 4 weeks
Weight- 5kg for 500mm model
Variant Applications
Machines / Applications
Cleaning of flat conveyor belts without brushes
Sanitising food contact surfaces using saturated dry steam
Quick debris removal (oil, sugar, crumbs, product residues)
Cleaning belts of varying but similar widths (within 250mm range)
Situations where belts need to be left dry and ready for immediate reuse
Industries
Food Processing & Production
Dairy & Cheese Plants

BRUSHLESS SYSTEM (HAND HELD) (Portable steam cleaner for flat belts (without tray))

This handheld variant of the Brushless System follows the same cleaning principle as the standard model but is manually held against the moving conveyor belt by the operator, cleaning in strips based on the device’s width. It’s ideal for short conveyor belts of varying widths and in spaces with limited overhang where tray-mounted options aren’t suitable. Additionally, it can be used to clean the product contact side of modular flat top belts. When paired with KHD steam generators, built-in switches ensure steam is released only when the cleaner is in contact with the belt, maximizing efficiency and safety. Features: 1) Portable and very quick to set up, 2) Easy to clean, 3) Integrated switches for safe steam control, 4) Sanitises without resorting to chemicals. 5) FDA approved belt contact materials, 6) Wet vacuum with 38mm hose required.

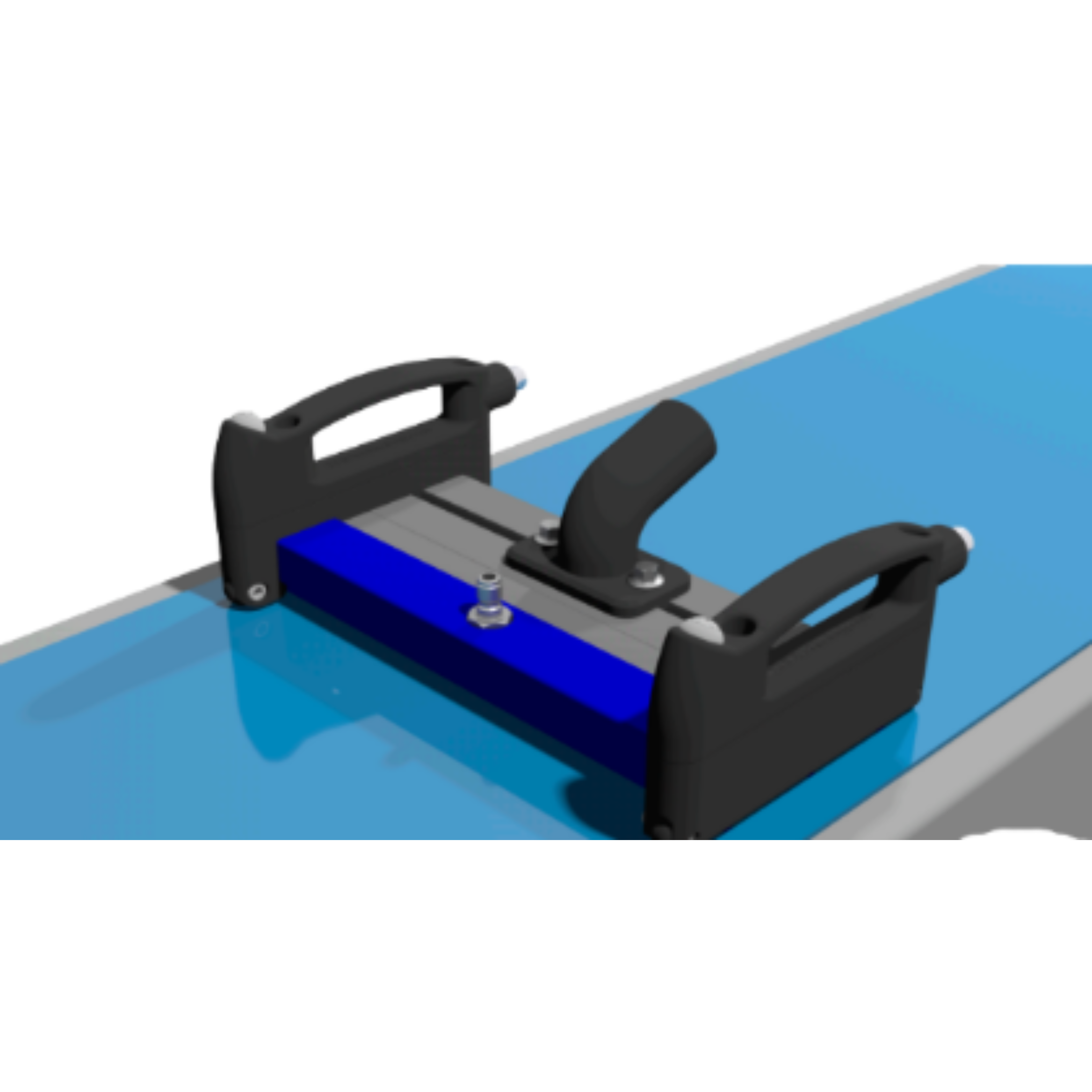

Variant Image
