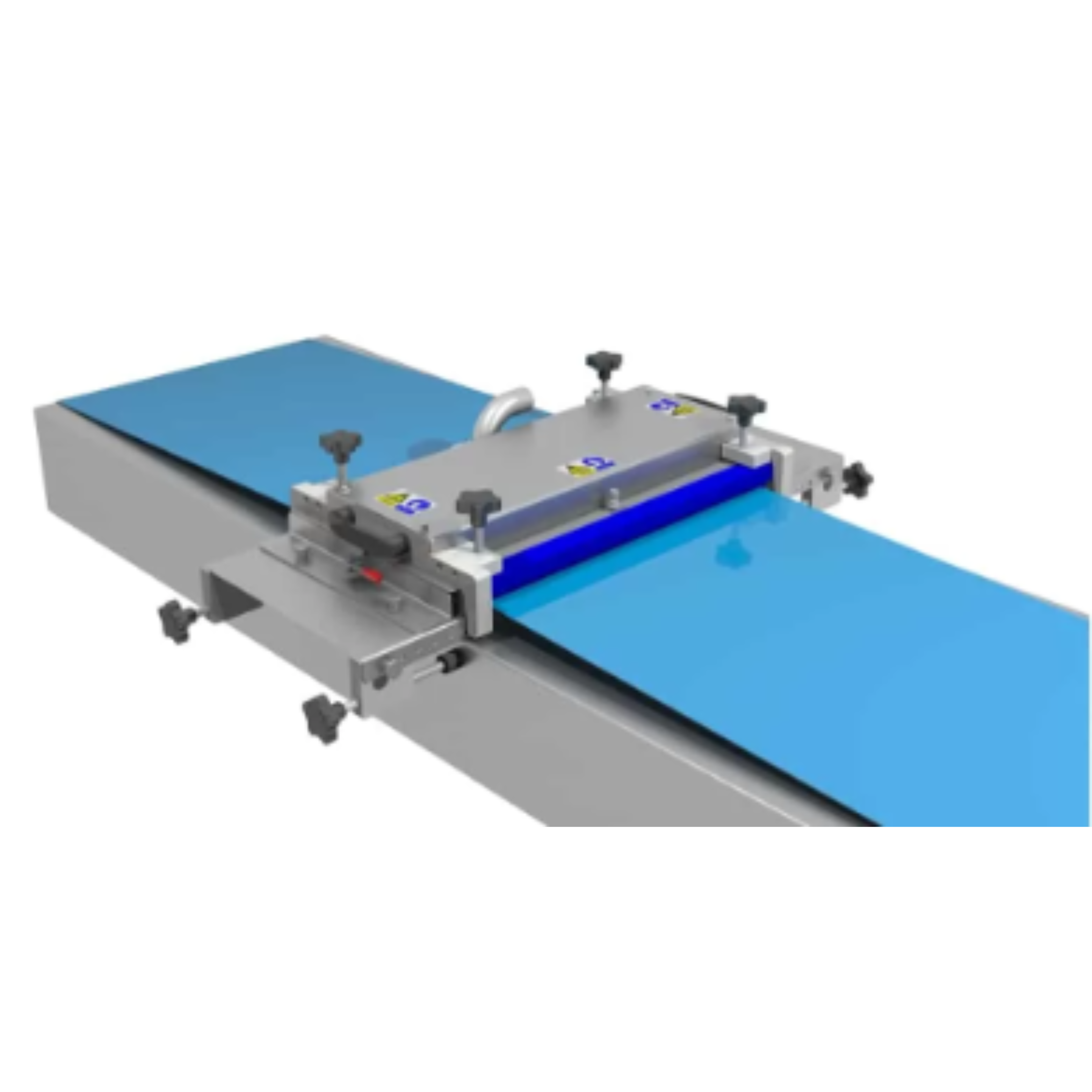

BRUSHLESS SYSTEM (NO TRAY) (Portable steam cleaner for flat belts (without tray))
This variant of the Brushless System offers the same performance as the standard model but without a tray, using brackets fixed directly to the conveyor structure. It is suitable only for conveyors with a flat bed across the width and is ideal for installations with limited overhang space. Minor conveyor modifications are required for setup.
Features: 1) Portable and very quick to set up, 2) Easy to clean, 3) One cleaner can be used on similar sized belts, 4) Sanitises without resorting to chemicals,
5) FDA approved belt contact materials, 6) Wet vacuum with 38mm hose required.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Steam power | - | 9kW to 36kW |
| Vacuum | - | Via KHD steam generator |
| Conveyor sizes | - | Virtually any size |
| Steam pressure | - | Up to 10 Bar |
| Made to order | - | Any size in approx 4 weeks |
| Weight | - | 12kg for cleaning head on 1,000mm model |
Variant Applications
| Machines / Applications |
|---|
| Cleaning of flat conveyor belts without brushes |
| Sanitising food contact surfaces using saturated dry steam |
| Quick debris removal (oil, sugar, crumbs, product residues) |
| Cleaning belts of varying but similar widths (within 250mm range) |
| Situations where belts need to be left dry and ready for immediate reuse |
| Industries |
|---|
| Food Processing & Production |
| Dairy & Cheese Plants |
