FIXED SYSTEM - DUAL (Return mounted steam cleaner for flat belts)

The Return-Mounted Dual Head System is a user-friendly steam cleaner designed for easy installation and quick removal. It effectively cleans both the food-contact and reverse sides of conveyor belts, delivering the same high-performance results as the Brushless System. Compatible with KHD steam generators or factory steam, it fits both new and existing conveyors. Features: 1) Simple retrofit installation, 2) Opportunity for use during production, 3) Very quick to remove for cleaning, 4) Rest position away from belt, 5) Limit switch positions for system integration, 6) Sanitises without resorting to chemicals, 7) FDA approved belt contact materials, 8) Wet vacuum with 38mm hose required, 9) Customisable to suit conveyor frame fixing.

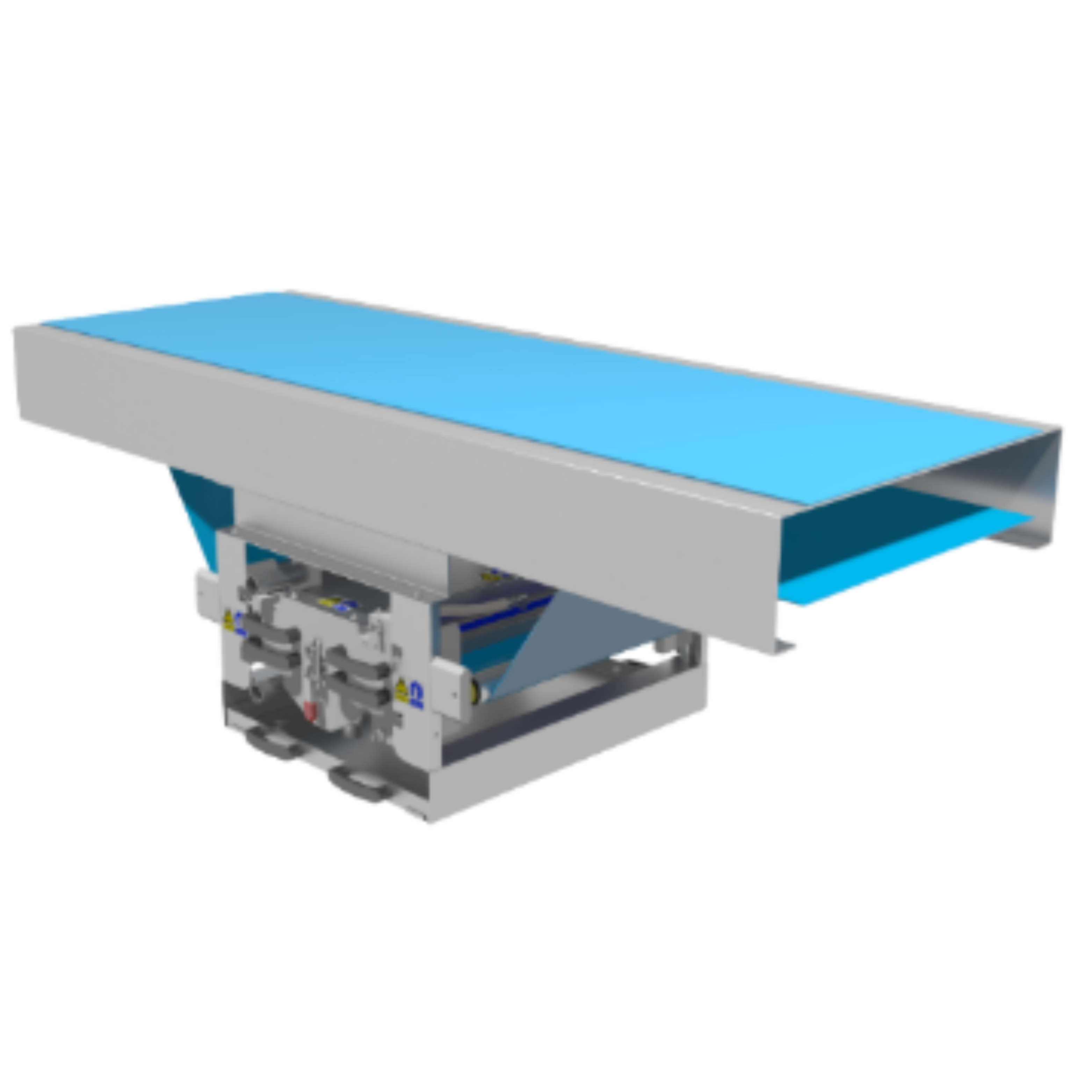

Variant Image
FIXED SYSTEM - DUAL (Return mounted steam cleaner for flat belts)
Selection Parameters
ParametersMinMax
Steam power-9kW to 36kW
Vacuum-Via KHD steam generator or standalone
Conveyor sizes-Virtually any size
Steam pressure-Up to 10 Bar
Made to order -Any size in approx 5-6 weeks
Weight-13kg for each cleaning head on 1,000mm model
Variant Applications
Machines / Applications
Cleaning both food-contact and reverse sides of flat conveyor belts
Return-side belt cleaning without stopping production
Frequent belt sanitation in high-use areas
Integration with factory steam or KHD steam generators
Suitable for automated or semi-automated cleaning setups
Industries
Food Processing & Production
Dairy & Cheese Plants
