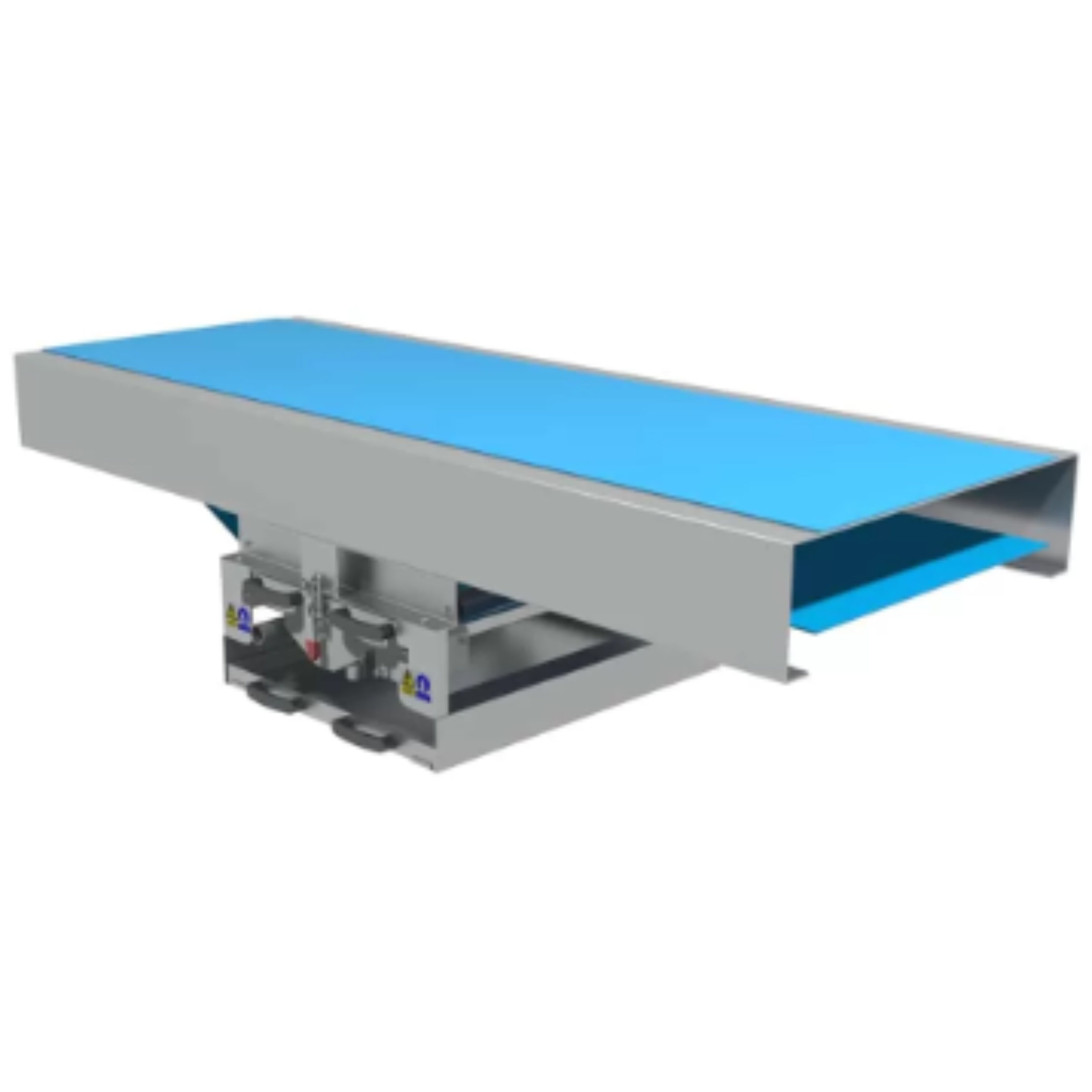

FIXED SYSTEM - SINGLE (Return mounted steam cleaner for flat belts)

The Single Fixed-Head Flat Belt Cleaner is designed for efficient removal of light to medium debris on long or frequently cleaned conveyor belts. Using saturated dry steam and vacuum, it sanitizes food-contact surfaces without chemicals, brushes, or excess water—leaving belts dry and ready for immediate use. Ideal for food production, it features a quick-release head for easy maintenance and operates with minimal water usage, making it both eco-friendly and cost-effective. Features: 1) Simple retrofit installation, 2) Opportunity for use during production, 3) Very quick to remove for cleaning, 4) Rest position away from belt, 5) Limit switch positions for system integration, 6) Sanitises without resorting to chemicals, 7) Sanitises without resorting to chemicals, 8) FDA approved belt contact materials, 9) Wet vacuum with 38mm hose required, 10) Customisable to suit conveyor frame fixing.
Variant Image
FIXED SYSTEM - SINGLE (Return mounted steam cleaner for flat belts)
Selection Parameters
ParametersMinMax
Steam power-9kW to 36kW
Vacuum-Via KHD steam generator or standalone
Conveyor sizes-Virtually any size
Steam pressure-Up to 10 Bar
Made to order-Any size in approx 5 weeks
Weight-13kg for cleaning head on 1,000mm model
Variant Applications
Machines / Applications
Automated, in-place cleaning of flat conveyor belts
Continuous removal of debris, oils, and residues during or between production runs
Fixed installation for belts that don’t require frequent width adjustments
Industries
Food Processing & Production
Dairy & Cheese Plants
