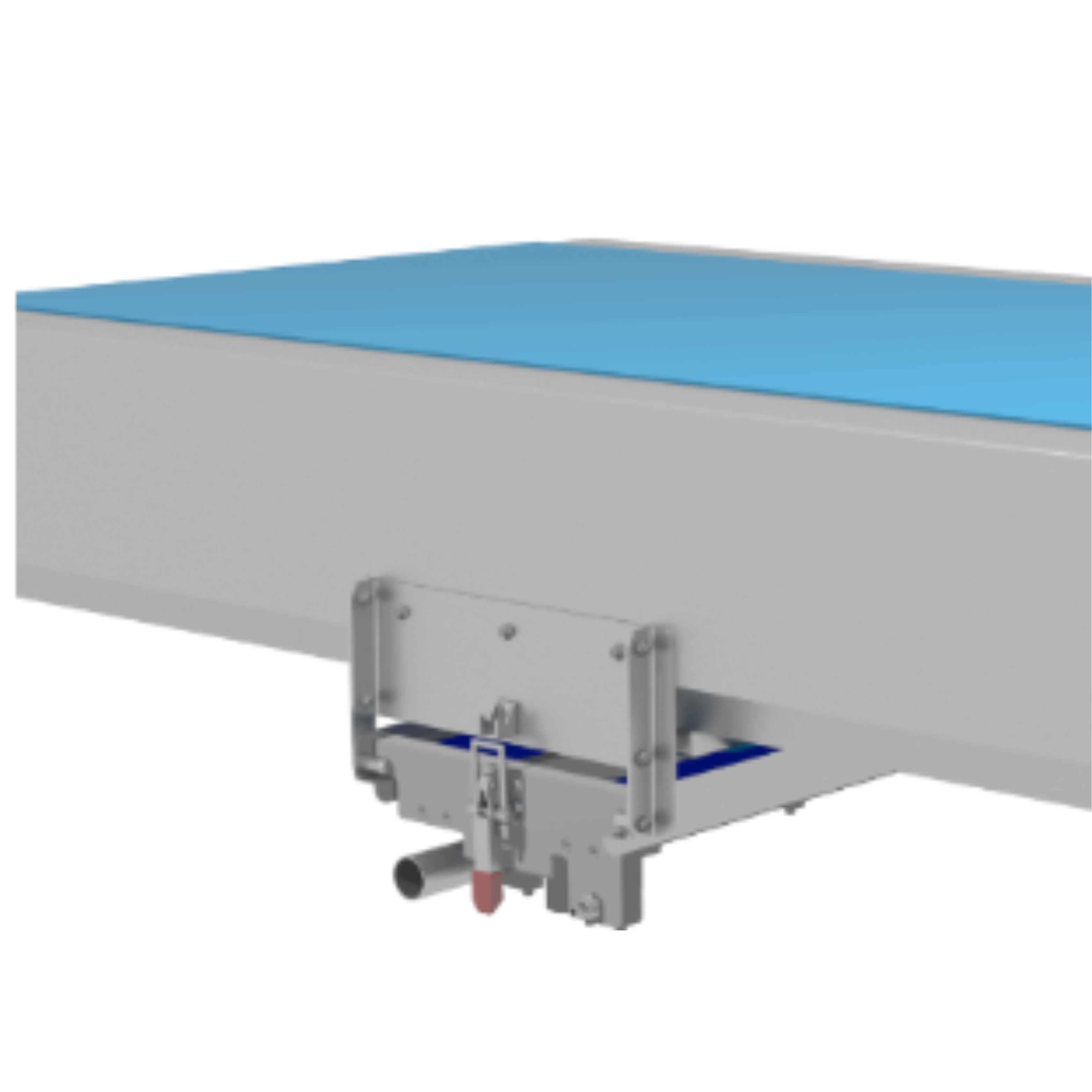

NARROW FIXED SYSTEM - SINGLE (Simplified return mounted steam cleaner for flat belts)
The Narrow Fixed System – Single Head is a compact, return-mounted steam cleaner designed for flat belts in space-restricted areas or shorter conveyor runs. It offers the same effective cleaning as the Brushless System, without the drip tray (optional), and is easy to install and remove for maintenance. Suitable for both new and existing conveyors. Features: 1) Simple retrofit installation, 2) Opportunity for use during production, 3) Very quick to remove for cleaning, 4) Rest position away from belt, 5) Sanitises without resorting to chemicals, 6) FDA approved belt contact materials, 7) Wet vacuum with 38mm hose required, 8) Options: Extra frame, drip hopper (per frame), 9) Customisable to suit conveyor frame.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Steam power | - | 9kW to 36kW |
| Vacuum | - | Operated via KHD steam generator or standalone |
| Conveyor sizes | - | Virtually any size |
| Steam pressure | - | Up to 10 Bar |
| Made to order | - | Any size in approx 5 weeks |
| Weight | - | 13kg for cleaning head on 1,000mm model |
Variant Applications
| Machines / Applications |
|---|
| Cleaning the food-contact side of flat conveyor belts |
| Ideal for shorter-length belts or space-restricted areas |
| Used for return-side belt cleaning where debris needs to be removed efficiently |
| Suitable for automated or semi-automated cleaning with minimal setup |
| an be installed on both existing conveyors and new builds |
| Industries |
|---|
| Food Processing & Production |
| Dairy & Cheese Plants |
