KHD09

This 9 kW entry-level steam generator designed for light to medium-duty industrial cleaning, ideal for applications like confectionery, oil residue, or low-adhesion baked food on small to medium flat conveyor belts. It features a 20L onboard water reservoir for flexible use with just a power supply and supports continuous external mains water fill for uninterrupted operation on longer belts. Equipped with belt and external steam controls, integrated 24VDC and 230VAC (10A max) outputs, and capable of using up to 13.2 L/hr (dry) or 18 L/hr (wet) steam, the KHD09 is versatile, efficient, and easy to manage for general and detail cleaning. Features: 1) 20L on board water reservoir, 2) Continuous external mains water fill, 3) Belt cleaning controls, 4) External steam control, 5) 24VDC power output (10A max), 6) 230VAC power output (10A max), 7) General cleaning lance and detail brushes, 8) Comprehensive optional accessories available.

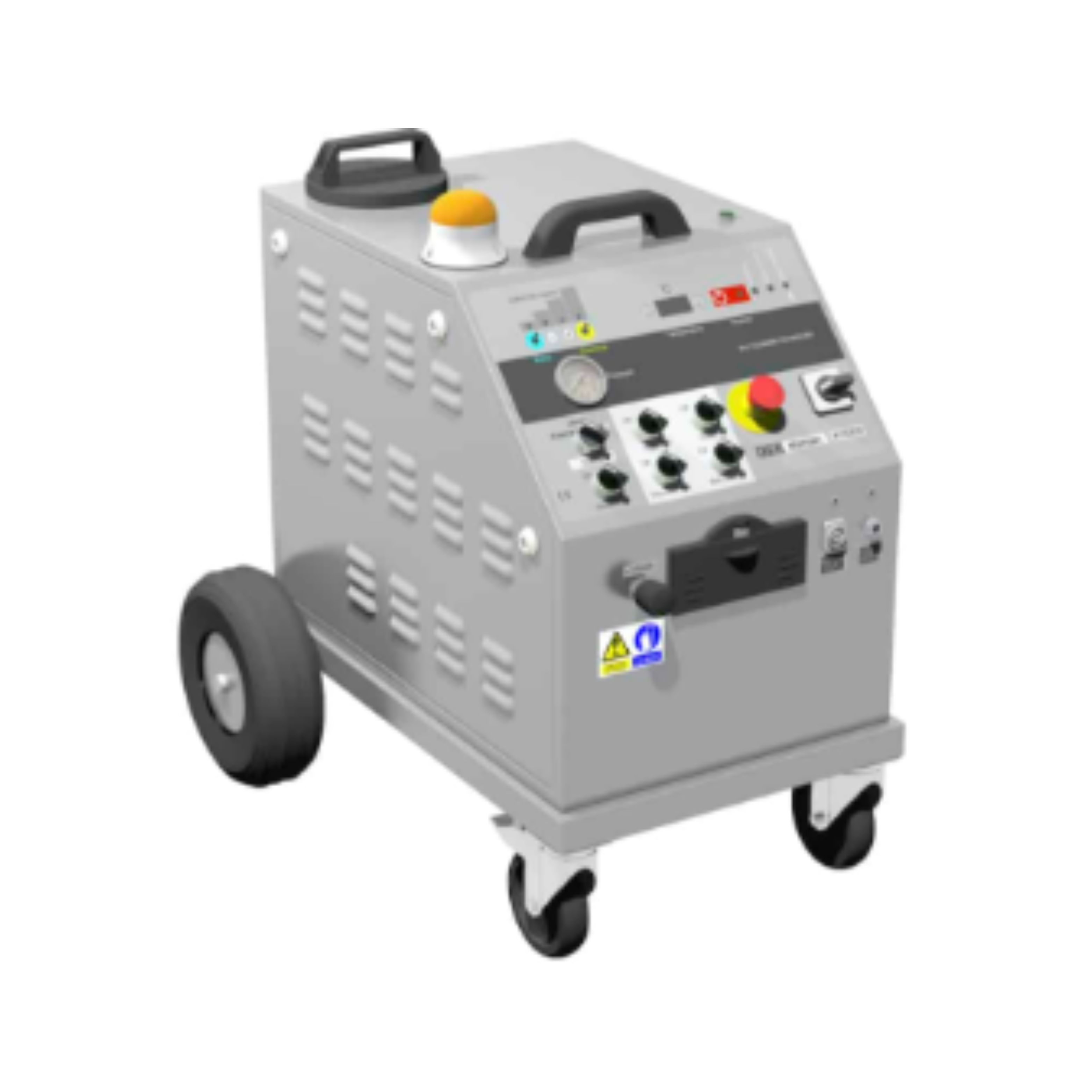

Variant Image
KHD09
Selection Parameters
ParametersMinMax
Power-9kW
Power socket- 16A three phase (5 x pin)
Vacuum-Option
Water usage-13.2L/hr max (dry), 18L/hr max (wet)
Steam pressure-10 Bar
Net weight-63kg
Size (L x W x H)- 83 x 60 x 110cm
Power cord-10m
Variant Applications
Machines / Applications
Conveyor belt cleaning
Removal of light-to-medium debris
Dry environments
Industries
Food
