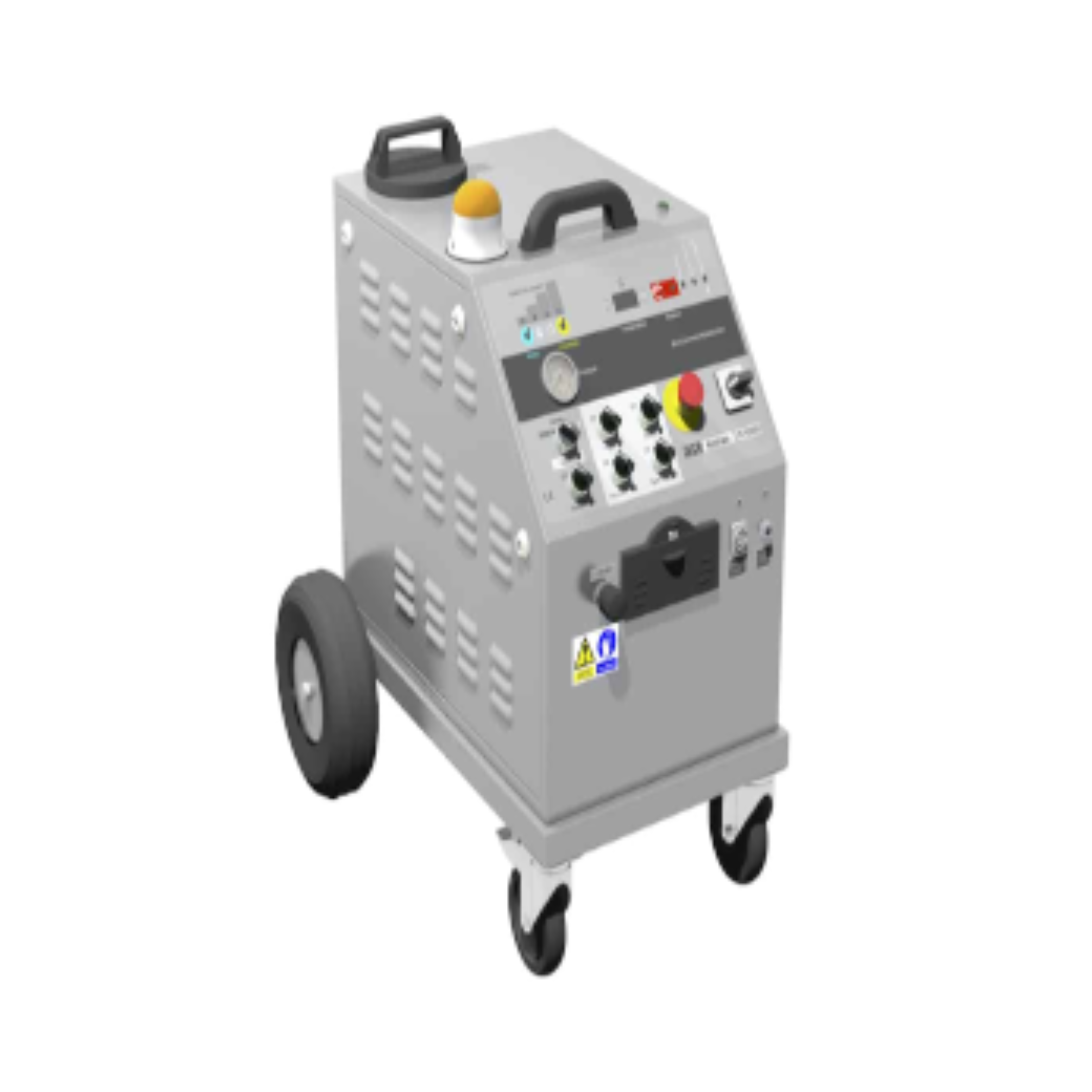

KHD36

This is the most powerful dry steam generator in the KHD range, designed for demanding industrial environments. Operating on a 63A three-phase power supply (5-pin socket), it delivers exceptional cleaning performance with a maximum water usage of 51.6L/hr (dry) and 66L/hr (wet). Ideal for heavy-duty conveyor belt and general cleaning applications, this offers all the advanced features and reliability expected from KHD Technology’s industry-leading steam systems. Features: 1) 40L on board water reservoir, 2) Continuous external mains water fill, 3) Belt cleaning controls, 4) External steam control, 5) 24VDC power output (10A max), 6) 230VAC power output (10A max), 7) General cleaning lance and detail brushes, 8) Comprehensive optional accessories availabl.
Variant Image
KHD36
Selection Parameters
ParametersMinMax
Power- 36kW
Power socket-63A three phase (5 x pin)
Vacuum-Option
Water usage-51.6L/hr max (dry), 66L/hr max (wet)
Steam pressure- 10 Bar
Net weight-108kg
Size (L x W x H)- 104 x 70 x 110cm
Power cord-10m
Variant Applications
Machines / Applications
Conveyor belt cleaning
Removal of light-to-medium debris
Dry environments
Industries
Food
