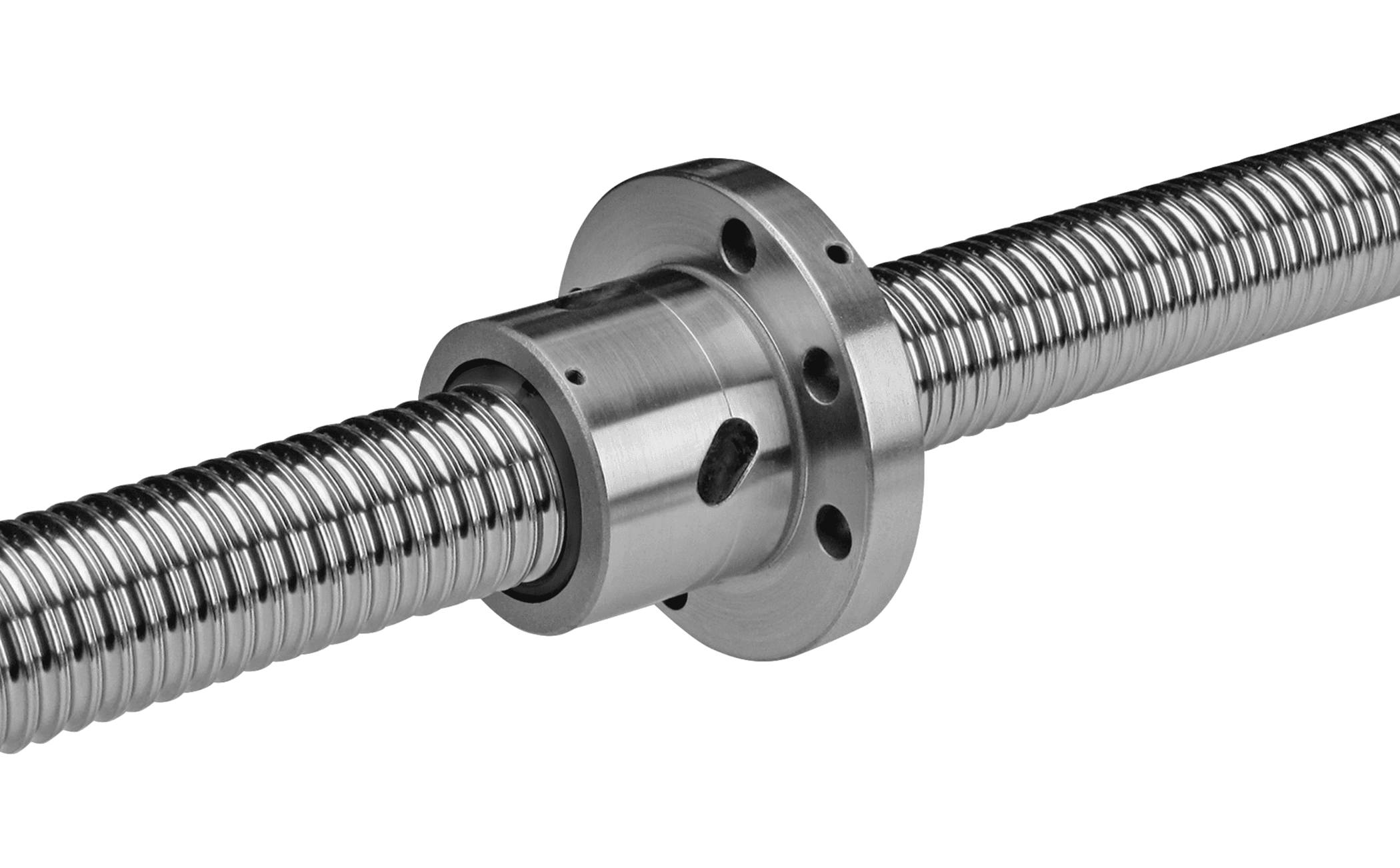

Basic Ball Screw
Basic Ball Screws are intended for applications without emphasis on high positioning precision such as transportation and lifting equipment, wood turning machine tools, etc. Basic Ball Screws are rolled threaded with accuracy classes T5, T7 according to ISO3408. Lengths available are up to 5600 mm & Diameter up to 63 mm. Basic Ball Screws Transmission Efficiency up to 95%. Basic Ball Screws can Customized as per Drawing.
Basic Ball Screw
Basic Ball Screws are intended for applications without emphasis on high positioning precision such as transportation and lifting equipment, wood turning machine tools, etc. Basic Ball Screws are rolled threaded with accuracy classes T5, T7 according to ISO3408. Lengths available are up to 5600 mm & Diameter up to 63 mm. Basic Ball Screws Transmission Efficiency up to 95%. Basic Ball Screws can Customized as per Drawing.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Diameter | 63mm | |
| Accuracy Classes | T5 | T7 |
| Transmission Efficiency | 93% | 95% |
Machines / Applications
| Transport mechanisms |
| Woodworking machines tools |
| Industrial automation |
Industries
| Material Handling |
| Automation |
| Packaging |
