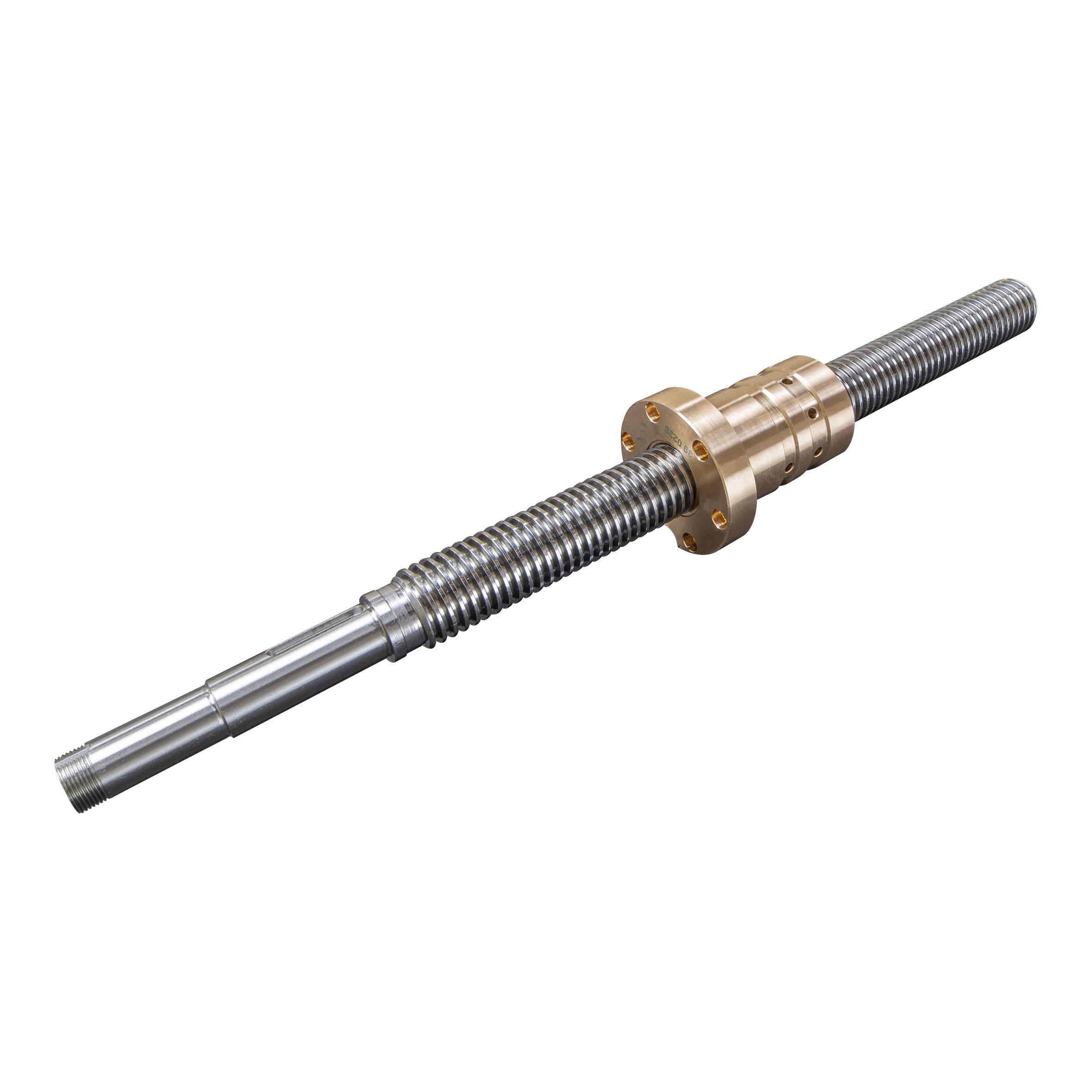

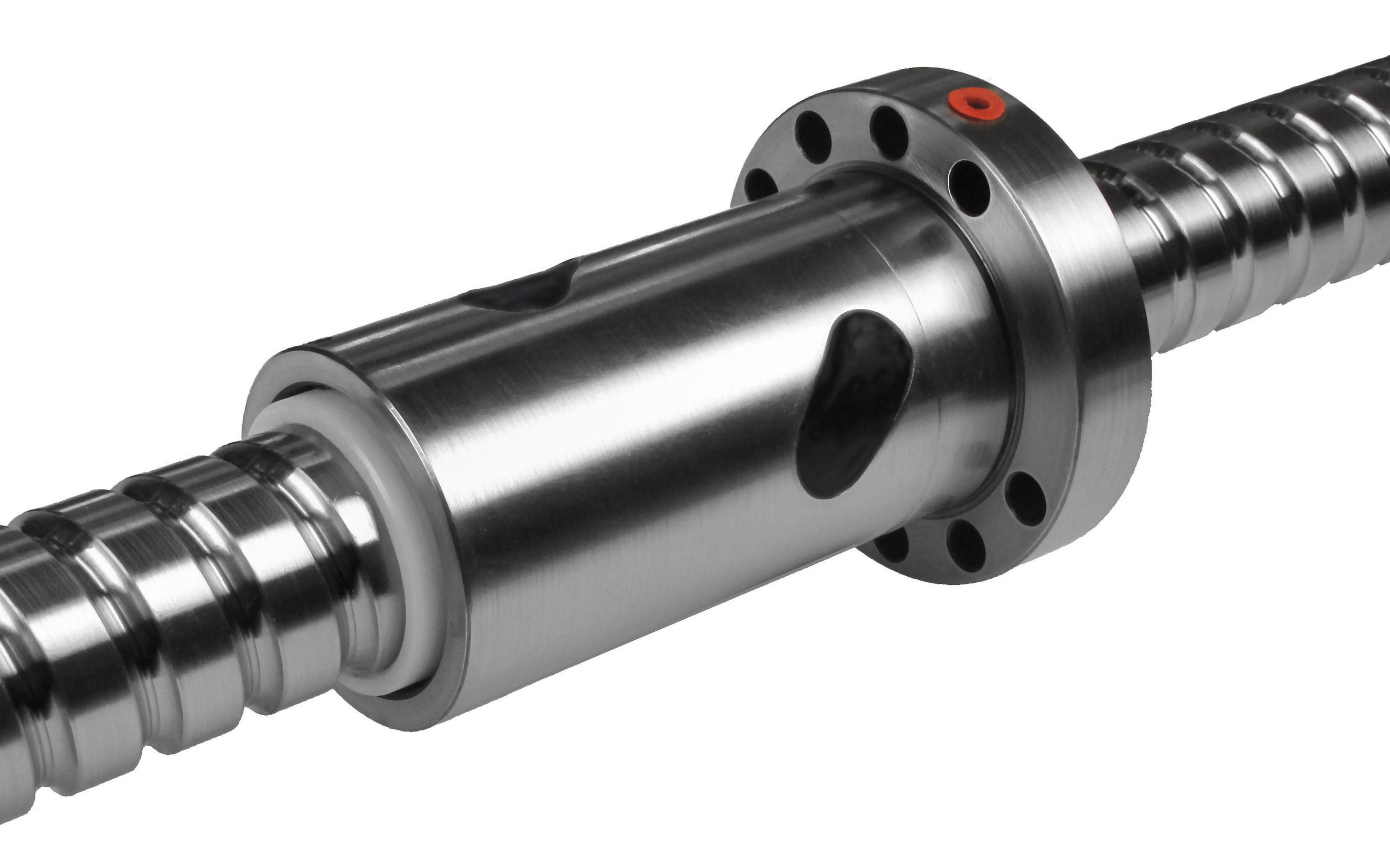

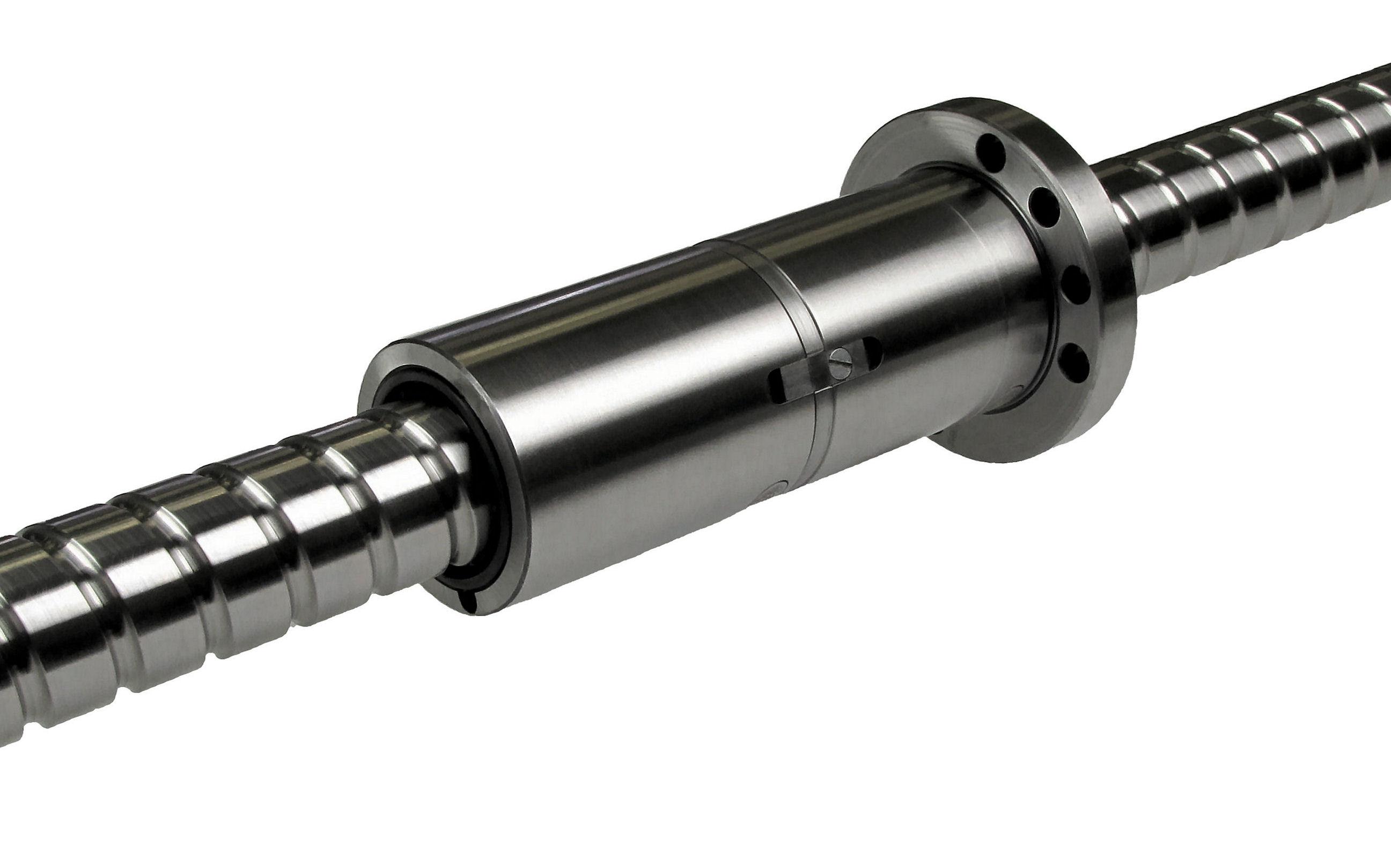

Precise Ball Screw
Precise Screws is the most commonly used type of ball screws due to its universality, excellent technical parameters and wide design scope. These Ball screws have grounded threads with Length up to 15000 mm & Diameter up to 180 mm. Precise screws are available with P0 to P5 Accuracy classes according to ISO3408. Precise ball screws provide transmission Efficiency up to 97%.These Ball Screws can be Customized as per Drawing.
Precise Ball Screw
Precise Screws is the most commonly used type of ball screws due to its universality, excellent technical parameters and wide design scope. These Ball screws have grounded threads with Length up to 15000 mm & Diameter up to 180 mm. Precise screws are available with P0 to P5 Accuracy classes according to ISO3408. Precise ball screws provide transmission Efficiency up to 97%.These Ball Screws can be Customized as per Drawing.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Diameter range | 20 mm | 180 mm |
| Pitch | 5 mm | 50 (P25) mm |
| Number of effective turns | 0.8 | 7.6 |
| Length of Nut | 41 mm | 478 mm |
| Ball Nut diameter | 36 mm | 170 mm |
| Flange diameter | 58 mm | 125 mm |
| Load static | 21,184 N | 1,168,525 N |
| Load dynamic | 13,714 N | 359,491 N |
| Flange Width | 10 mm | 30 mm |
Machines / Applications
| Grinding machine tools |
| Milling and boring machine tools |
| Machinning centres |
| Transport mechanisms |
| Woodworking machines tools |
| Industrial automation |
Industries
| Packaging |
| Automation |
| Material Handling |
