Moving stator F01/E01
The LinMot FM01 and EM01 modules use linear tubular motors in moving stator applications. Up to two high-precision profile rail modules are linked to a specific aluminium profile, which serves as the foundation for the mechanical structure. Ball bearings in the carriages ensure dependable and error-free operation as well as the absorption of outside stresses, torques, and bending moments. These solutions enable precise and dynamic load positioning and have great guiding accuracy.

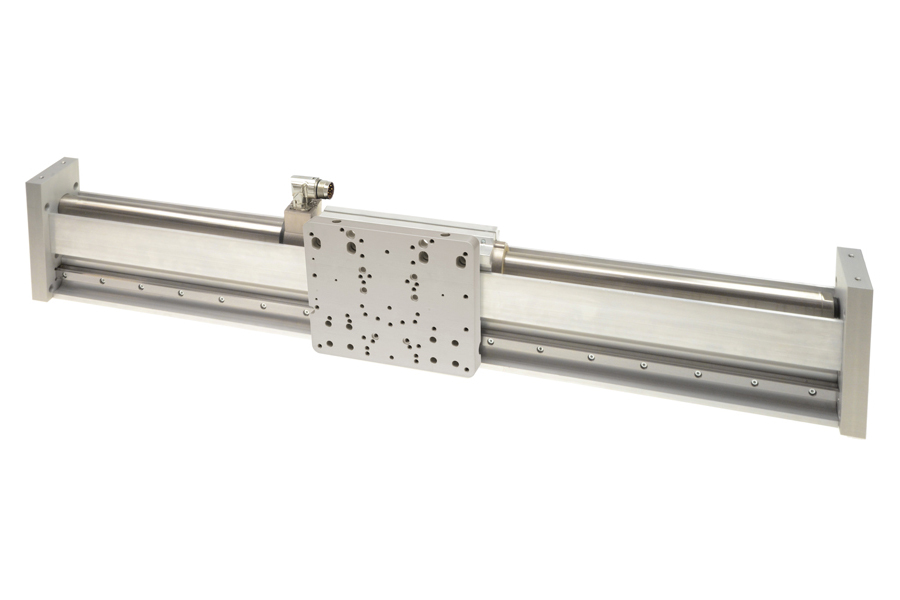

Variant Image

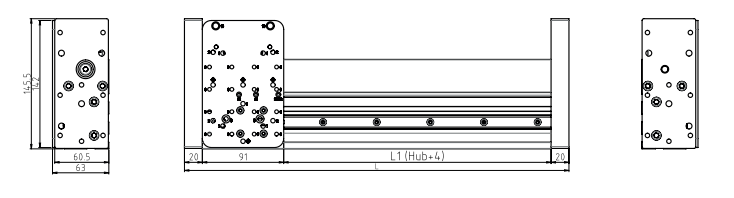

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Module Size | 37 | 48 |
| Maximum Stroke | 80 mm | 2235 mm |
| Force | 128 N | 1020 N |
| Total Length | 330 mm | 2490 mm |
Variant Applications
| Machines / Applications |
|---|
| Printing |
| packaging |
| CNC |
| Inspection |
| Industrial Robots |
| Industries |
|---|
| Packaging |
| Electronics |
| Laboratory Automation |
| Food processing |
| Automotive |
