Linear Guides
LinMot linear guides are small guide units with built-in ball bushings or bearings for the LinMot linear motors. To handle outside forces, torques, and bending moments, the guides use load bearings. The linear guides also function as an anti-twist mechanism. They enable the load to be dynamically and precisely positioned and offer high-precision steering.

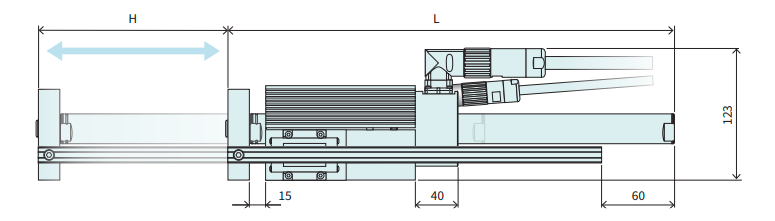

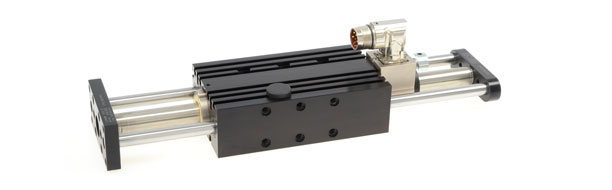

Variant Image
Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Maximum stroke | 60 mm | 530 mm |
| Peak Force | 67 N | 2720 N |
| Continuous Force | 14/23 | 14/23 |
| Maximum Velocity | 3.8 m/s | 9.9 m/s |
| Length | 205.5 mm | 1010 mm |
| Maximum Force | 229 N | 1024 N |
Variant Applications
| Machines / Applications |
|---|
| Printing |
| Packaging |
| CNC |
| AGVs |
| Industrial Robots |
| Industries |
|---|
| Food and Beverage |
| Pharmaceutical |
| Automation |
| Robotics |
| Automotive |
| Printing |
| Paper Handling |
Linear Guides
LinMot linear guides are small guide units with built-in ball bushings or bearings for the LinMot linear motors. To handle outside forces, torques, and bending moments, the guides use load bearings. The linear guides also function as an anti-twist mechanism. They enable the load to be dynamically and precisely positioned and offer high-precision steering.
Variant Image

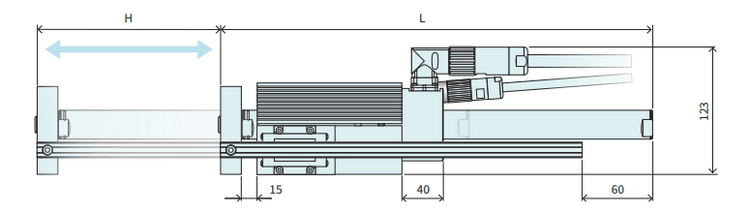

Variant Diagram
