Linear Module P04
The P04 actuator can be equipped with the mechanical accessories known from pneumatics. This makes the replacement of pneumatics even easier, as all mounting options known from pneumatics can be realized. With its free position ability and accelerations of up to 50 m/s2, dynamic and precise movements are the main discipline of this motor type.

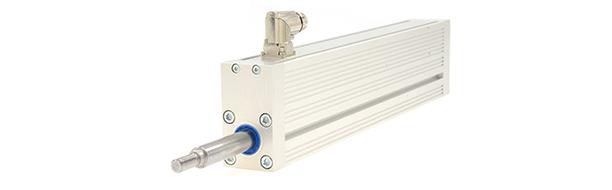

Variant Image

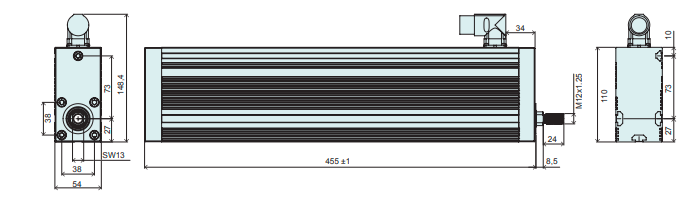

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Maximum stroke | 80 mm | 150 mm |
| Peak Force | 255 N | 572 N |
| Continuous Force | 63 N | 190 N |
| Minimum Velocity | 2.9 m/s | 3.8 m/s |
| Length | 355.3 mm | 567.5 mm |
Variant Applications
| Machines / Applications |
|---|
| Packaging |
| CNC |
| Printing and Paper Handling |
| Pick and place System |
| Industries |
|---|
| Semiconductor |
| Electronics |
| Printing and Paper |
| Medical |
