Linear motor Series P01
The LinMot P01 linear motors have integrated position measuring and overload protection. They are permanently operated ironless synchronous servo motors. Direct generation of the linear motion is accomplished by the slider's strong rare-earth magnets and the stator's windings.
Variant Diagram

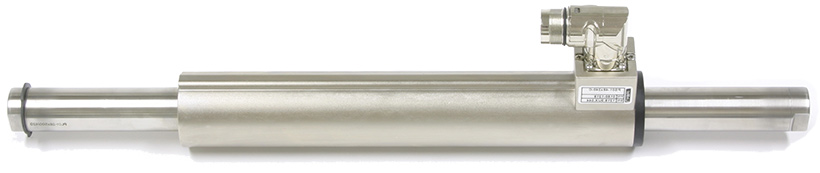

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Maximum stroke | 1830 mm | 1860 mm |
| Force | 29-255 N | 44-1024 N |
| Nominal Force | 13-68 N | 11-354 N |
| Stator Length | 90 mm | 409 mm |
| Peak Velocity | 6.9 | 8.2 |
Variant Applications
| Machines / Applications |
|---|
| Zellwag AG filling |
| sealing |
| CNC |
| Pick and Place |
| Plastic injection molding |
| Wood processing |
| Glass processing |
| Ceramic processing |
| Industries |
|---|
| Food and Beverage |
| Pharmaceutical |
| Automation |
| Robotics |
| Packaging |
| Printing |
