Linear motor Series P10 – 3x400VAC
The strongest LinMot motors for dynamic linear motions. They employ a 3x400VAC technology, which enables the motors to be more readily incorporated into the machine and used as a component. The P10 series has been purposefully outfitted with common encoders and temperature signals that can be read by almost all external drives.

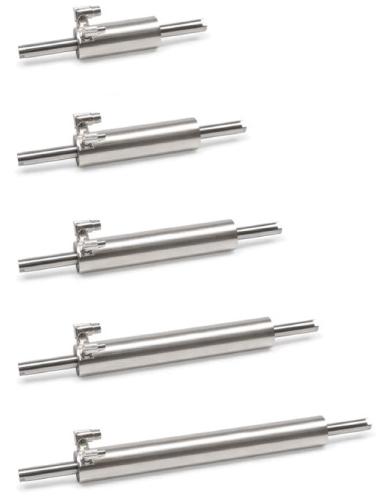

Variant Image
Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Maximum stroke | 1770 mm | 2240 mm |
| Force | 892 N | 2720 N |
| Nominal Force | 278 N | 68-914 N |
| Stator Length | 180-500 mm | 222-402 mm |
| Peak Velocity | 7.4 m/s | 11.1 m/s |
Variant Applications
| Machines / Applications |
|---|
| Printing Presses |
| Zellwag AG filling and sealing |
| Packaging and Labeling |
| Wood processing |
| Glass processing |
| Ceramic processing |
| Industries |
|---|
| Aerospace |
| Defence |
| Textile |
| Printing |
| Food and Beverages |
| Medical |
| Pharmaceutical |
Linear motor Series P10 – 3x400VAC
The strongest LinMot motors for dynamic linear motions. They employ a 3x400VAC technology, which enables the motors to be more readily incorporated into the machine and used as a component. The P10 series has been purposefully outfitted with common encoders and temperature signals that can be read by almost all external drives.

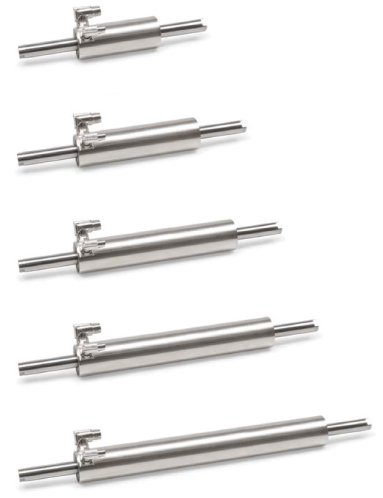

Variant Image
