Stainless Steel Linear Motor
The small LinMot SSC linear motors are constructed of stainless steel EN 1.4404/AISI 316 and were designed for harsh environments. The emphasis during this motor family's production was on hygienic design. The motors are made without extra edges, corners, holes, and screw connections to prevent the buildup of dirt, Because the linear motors' windings are completely coated in epoxy resin, the copper filling and the stator package are shielded from moisture and corrosion.

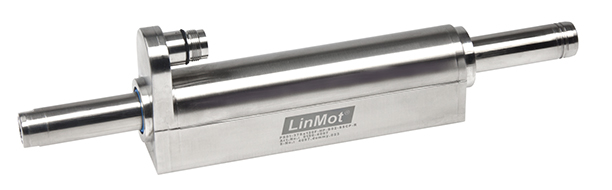

Variant Image

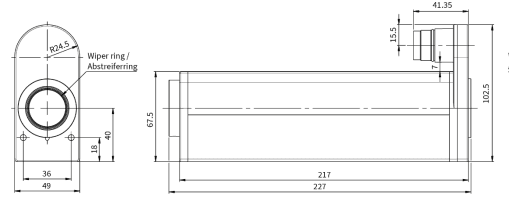

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Maximum stroke | 780 mm | 1530 mm |
| Force | 67.1 N | 2180 N |
| Velocity | 2.3 m/s | 7.3 m/s |
Variant Applications
| Machines / Applications |
|---|
| pick and Place |
| Vertical Slicer for Roast Meat |
| Flexible filling and closing |
| VX-8 machine |
| Wood processing |
| Glass processing |
| Ceramic processing |
| Industries |
|---|
| Marine |
| Offshore |
| Medical |
| Pharmaceutical |
| Food |
| Automation |
