Linear rotary motor Series PR01
The PR01 product family combines a linear and a rotary motor in just one housing. The two electromagnetic servo motors are built in series and thus enable the installation of this machine element in the smallest possible footprint. Numerous options such as the MagSpring load compensation, pneumatic brake, emergency rail kit and wiper can be added to the module.

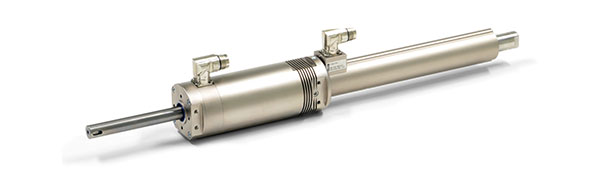

Variant Image

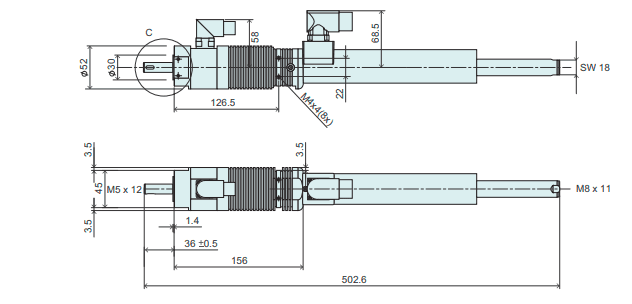

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Peak velocity | 3.9m/s | 3.9m/s |
| Peak torque | 1.5m/s2 | 8.9m/s2 |
| Maximum Number Of Revolution | 1000rpm | 1500rpm |
Variant Applications
| Machines / Applications |
|---|
| Assembly |
| Packaging |
| Industries |
|---|
| Food and Beverage |
| Pharmaceutical |
| Automation |
| Robotics |
