Ball Nuts

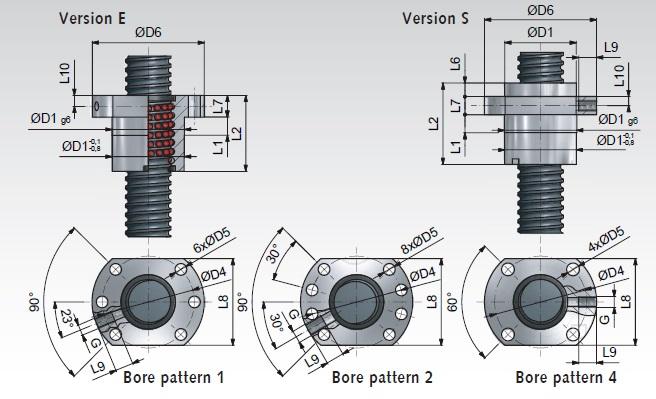

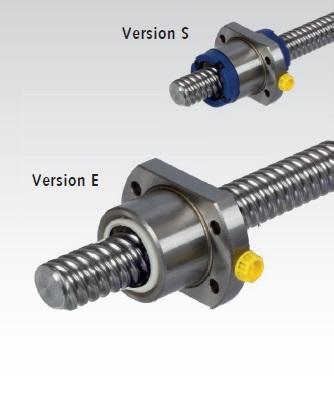

Maedler Ball Nuts are available in flanged and cylindrical versions for respective Ball Screw spindle.
Ball Nuts
Maedler Ball Nuts are available in flanged and cylindrical versions for respective Ball Screw spindle.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Diameter | 8 mm | 63 mm |
| Lead | 2 mm | 32 mm |
| Ball Diameter | 1.2 mm | 6.35 mm |
| Static Load | 2.52 KN | 206 KN |
| Dynamic Load | 1.39 KN | 60.7 KN |
Machines / Applications
| Conveyor Machines |
| SPM |
Industries
| Steel & Aluminium |
| Packaging Industry |
