Madler Curved-Tooth Gear Couplings
Maedler Curved-Tooth Gear Couplings are available with different types such as BW polyamide 6.6, BOZ polyamide 6.6, BOS II Polyamide/sintered metal, etc.

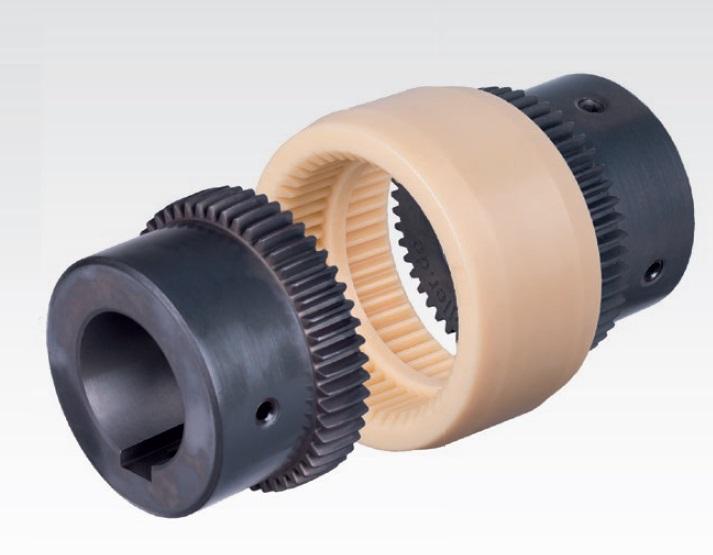

Variant Image

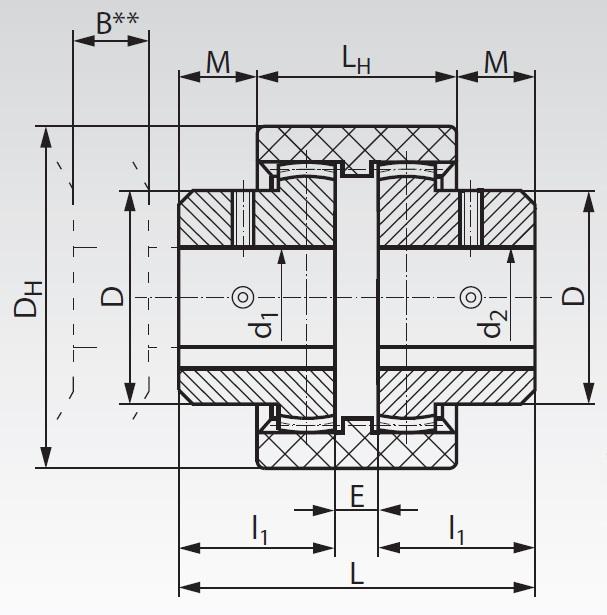

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Outer Diameter | 40 mm | 53 mm |
| Inner Diameter | 6 mm | 24 mm |
| Normal Torque | 5 Nm | 24 Nm |
| Peak Torque | 10 Nm | 36 Nm |
| Max Speed | 10000 min-1 | 13000 min-1 |
Variant Applications
| Machines / Applications |
|---|
| Small Light Generators |
| Cement Mills |
| Small Machine Tools |
| Centrifugal Pumps and Generators |
| Flour Mills and Food Grinders |
| Industries |
|---|
| Cement Manufacturer |
| Food Industry |
| Pump Manufacturer |
