Madler Helical Tooth Rack
Madler Helical Tooth Racks (square, right or left hand) are available with module 2,3,4,5 and material: Steel, 16MnCr5, C45.

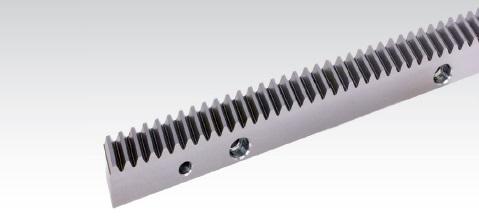

Variant Image

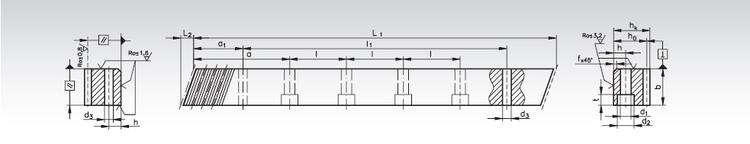

Variant Diagram
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Module | 0.3 | 5 |
| Length | 500 mm | 2000 mm |
Variant Applications
| Machines / Applications |
|---|
| Power Steering Rack Bar Polishing Machine (GmbH) |
| Industries |
|---|
| Thermal Powerplant |
| Material Handling Equipment Manufacturer |
| Printing Equipments Manufacturer |
| Automation Equipment Manufacturer |
