Madler Bevel Gearboxes
Maedler Bevel Gearboxes are miniaturized right-angle drives for light duty. It is suitable for manual and short term drive applications.

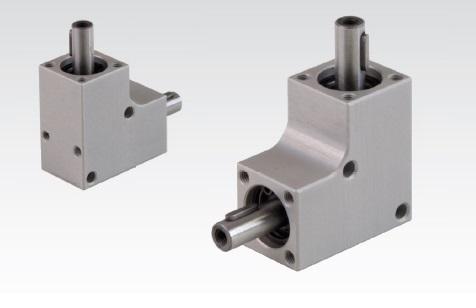

Variant Image

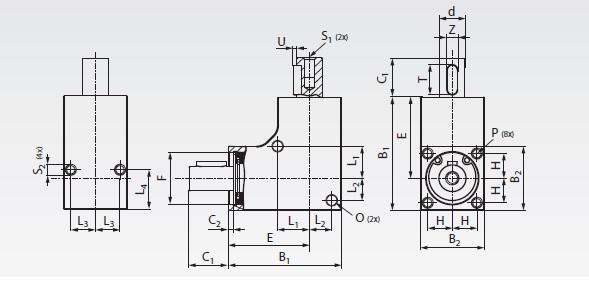

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Gear Ratio | 1:1 | 6:1 |
| Output Torque | 0.11 Nm | 600 Nm |
Variant Applications
| Machines / Applications |
|---|
| Federal-Mogul Burscheid GmbH Close Cap SPM m/c |
| Branner Gluing Machine |
| Industries |
|---|
| Cement Manufacturer |
| Textile Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
