Madler Worm Gear Units
Maedler has Helical, Bevel, and Worm gearboxes made from special steel.

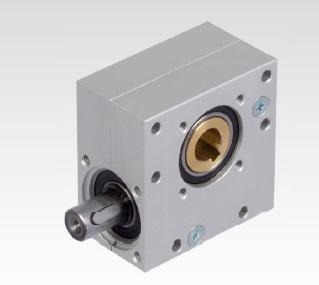

Variant Image

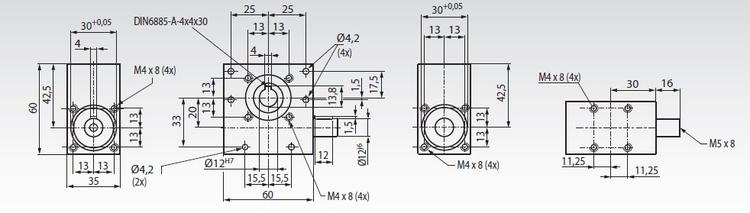

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Gear Ratio | 4.83:1 | 100:1 |
| Output Torque | 4.5 Nm | 840 Nm |
Variant Applications
| Machines / Applications |
|---|
| Federal-Mogul Burscheid GmbH Close Cap SPM m/c |
| Branner Gluing Machine |
| Industries |
|---|
| Cement Manufacturer |
| Textile Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
