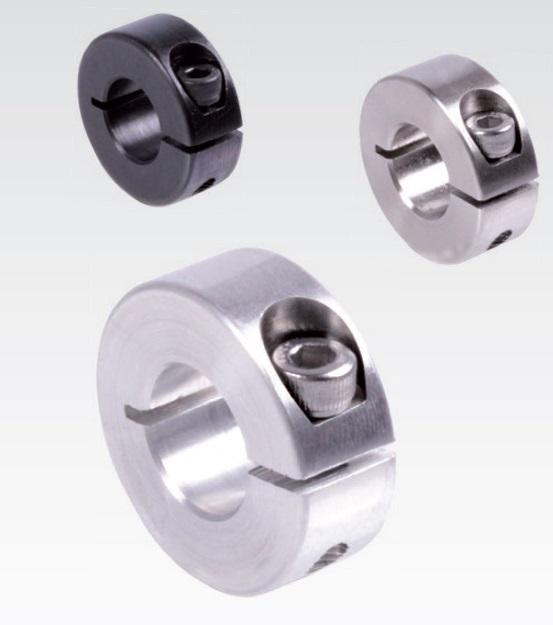

Shaft Collars or Clamp Collars
Maedler Shaft Collars or Clamp Collars are available with different types such as single and double split, doublewide, type B1, B2, GA, GR, S, N which are made up of steel black, steel zinc plated, stainless steel, aluminium, Alu anodized, etc.
Shaft Collars or Clamp Collars
Maedler Shaft Collars or Clamp Collars are available with different types such as single and double split, doublewide, type B1, B2, GA, GR, S, N which are made up of steel black, steel zinc plated, stainless steel, aluminium, Alu anodized, etc.
Ex-Stock Availability

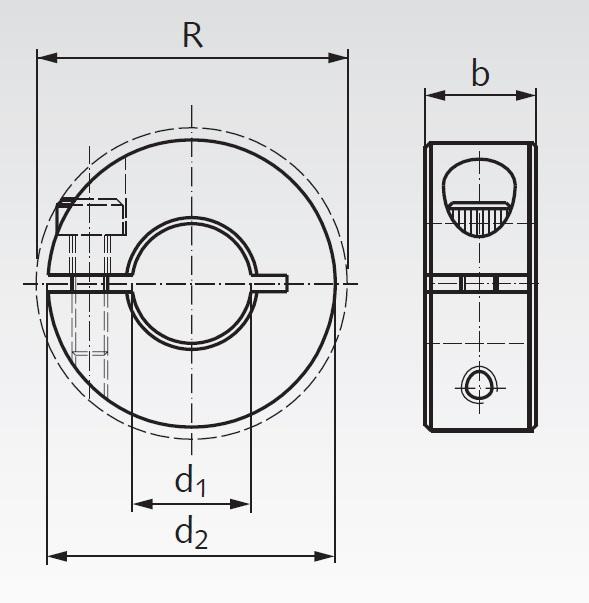

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Inner Diameter | 3 mm | 100 mm |
| Outer Diameter | 16 mm | 140 mm |
| Width | 9 mm | 41 mm |
| Temperature | -40ºC | 175ºC |
