Worm Gear Screw Jacks NP/I

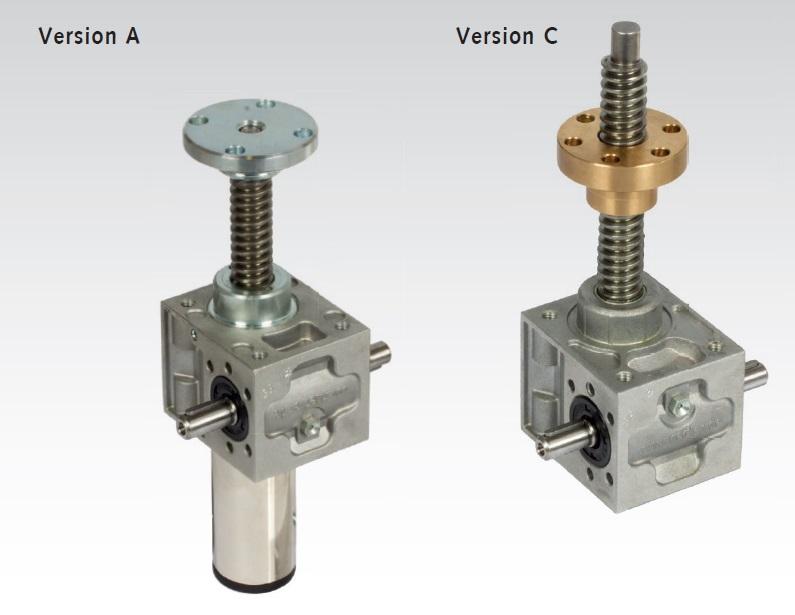

Maedler has three standard variants of screw jacks. Version A is which requires to be twisting secured, Version B comes with a groove that secures against twisting. The spindle moves in Version A and B. In Version C the threaded nut moves.
Worm Gear Screw Jacks NP/I
Maedler has three standard variants of screw jacks. Version A is which requires to be twisting secured, Version B comes with a groove that secures against twisting. The spindle moves in Version A and B. In Version C the threaded nut moves.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Maximum Stroke Force | 2500 N | 50000 N |
| Required Torque at max. load | 1.5 Nm | 34 Nm |
