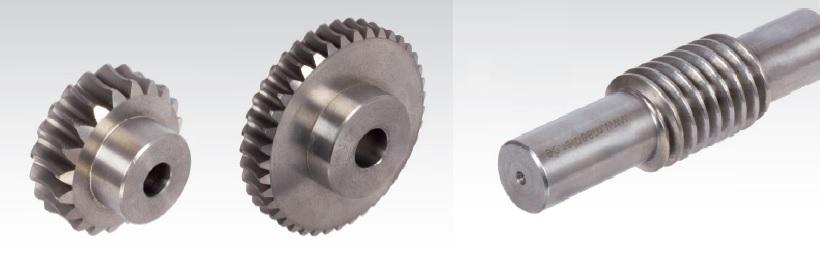

Worms and Worm Gears
Maedler consists of Worm shafts and Worm wheels with right-hand configuration as a standard. These are available in single and double thread versions. The standard pressure angle is 20º.
Worms and Worm Gears
Maedler consists of Worm shafts and Worm wheels with right-hand configuration as a standard. These are available in single and double thread versions. The standard pressure angle is 20º.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Transmission Ratio | 2.25:1 | 150:1 |
| Module | 0.3 | 6.3 |
| No. of Teeth | 16 | 100 |
Machines / Applications
| Automatic Door System |
| Automotive Steering Systems |
| Screw Conveyors |
Industries
| Packaging Equipment Manufacturer |
| Automotive |
