GH
A solid shaft pre lubricated gearhead provide High accuracy, shock load resistance. Basically preferred for high speed applications.

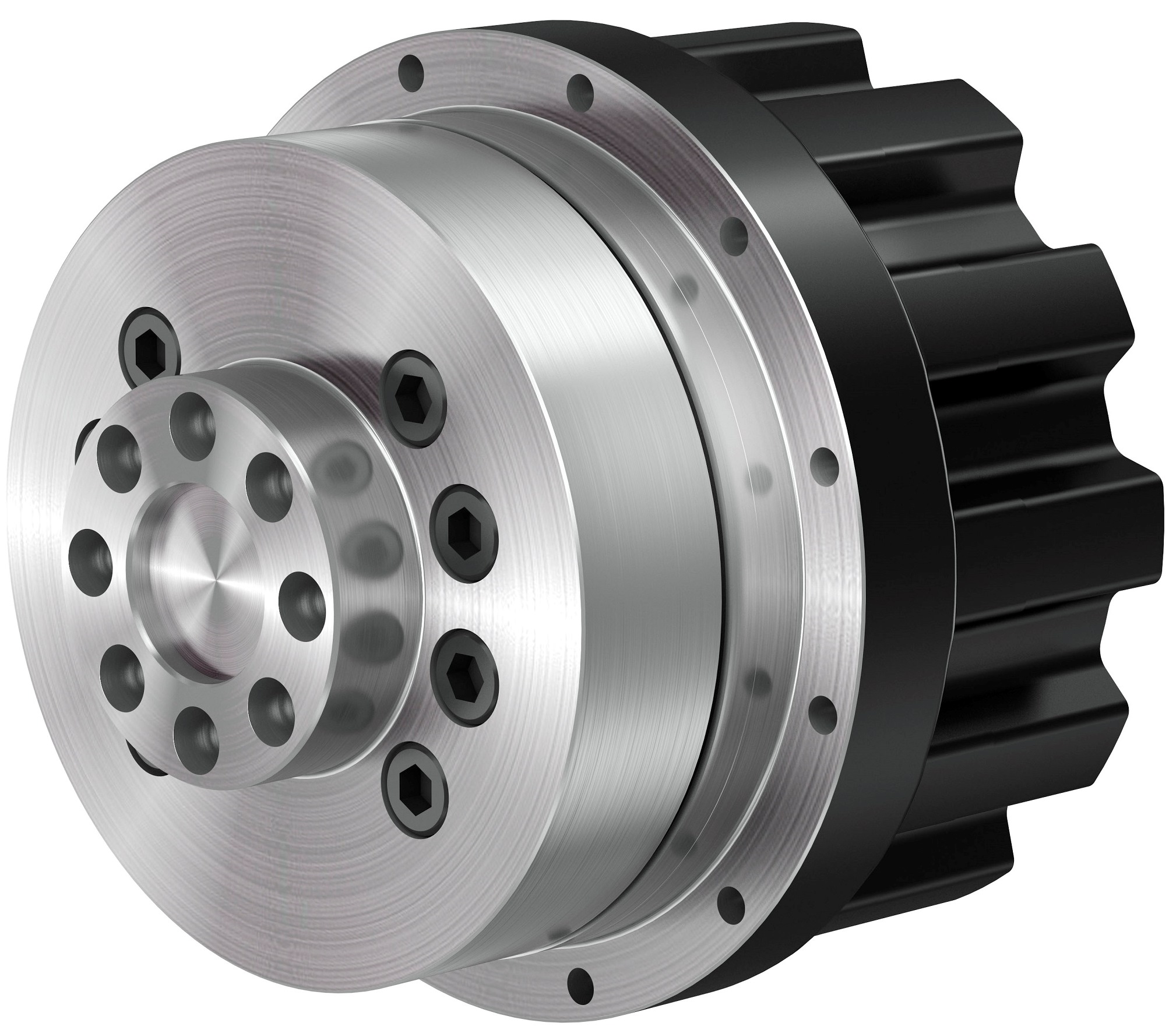

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Ratio | 11 | 31.4 |
| Rated Torque | 69 Nm | 980 Nm |
| Rated Output speed | - | 50 rpm |
| Allowable Thrust load | 1372 N | 5586 N |
| Backlash | 6 arc.min | 10 arc.min |
Variant Applications
| Machines / Applications |
|---|
| Robot travel |
| Loader travel |
| Ball screw drive |
| AGV drive/handle |
| Transfer conveyor |
| Industries |
|---|
| Steel |
| Tyre |
| Material Handling |
| Automobile |
