RD 2
The RD Series is a pre-lubricated model with a sealed structure that can be easily mounted on all major motors. It offers High accuracy, shock load resistance. Backlash available is less than 1 arc min. Available in Straight, Right angle and pulley type input.

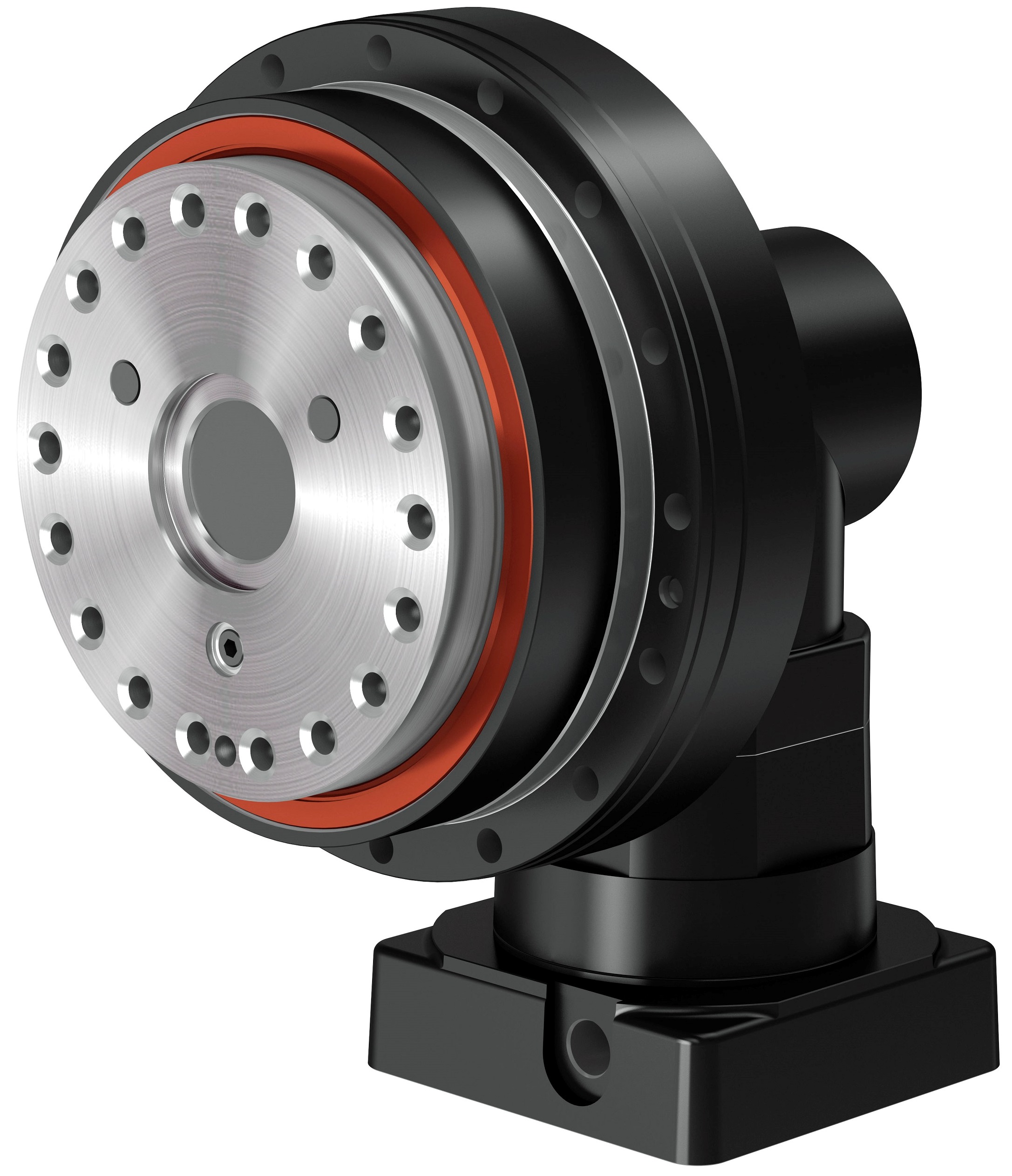

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Ratio | 31 | 253 |
| Rated Torque | 53 Nm | 3136 Nm |
| Rated Output speed | 15 rpm | 30 rpm |
| Allowable Thrust load | 1470 N | 2940 N |
| Backlash | 1 arc.min | 2 arc.min |
Variant Applications
| Machines / Applications |
|---|
| Palletizing Robots |
| Ball Screw Drive |
| Tilting axis Positioner |
| Rotary axis Positioner |
| Industries |
|---|
| Steel |
| Tyre |
| Material Handling |
| Automobile |
