RS
The RS type is a low profile gearheads that are pre-lubricated with a sealed structure and are available in five types to suit different load capacities. It offers High accuracy, shock load resistance. Backlash available is 1 arc min to 1.5 arc min.

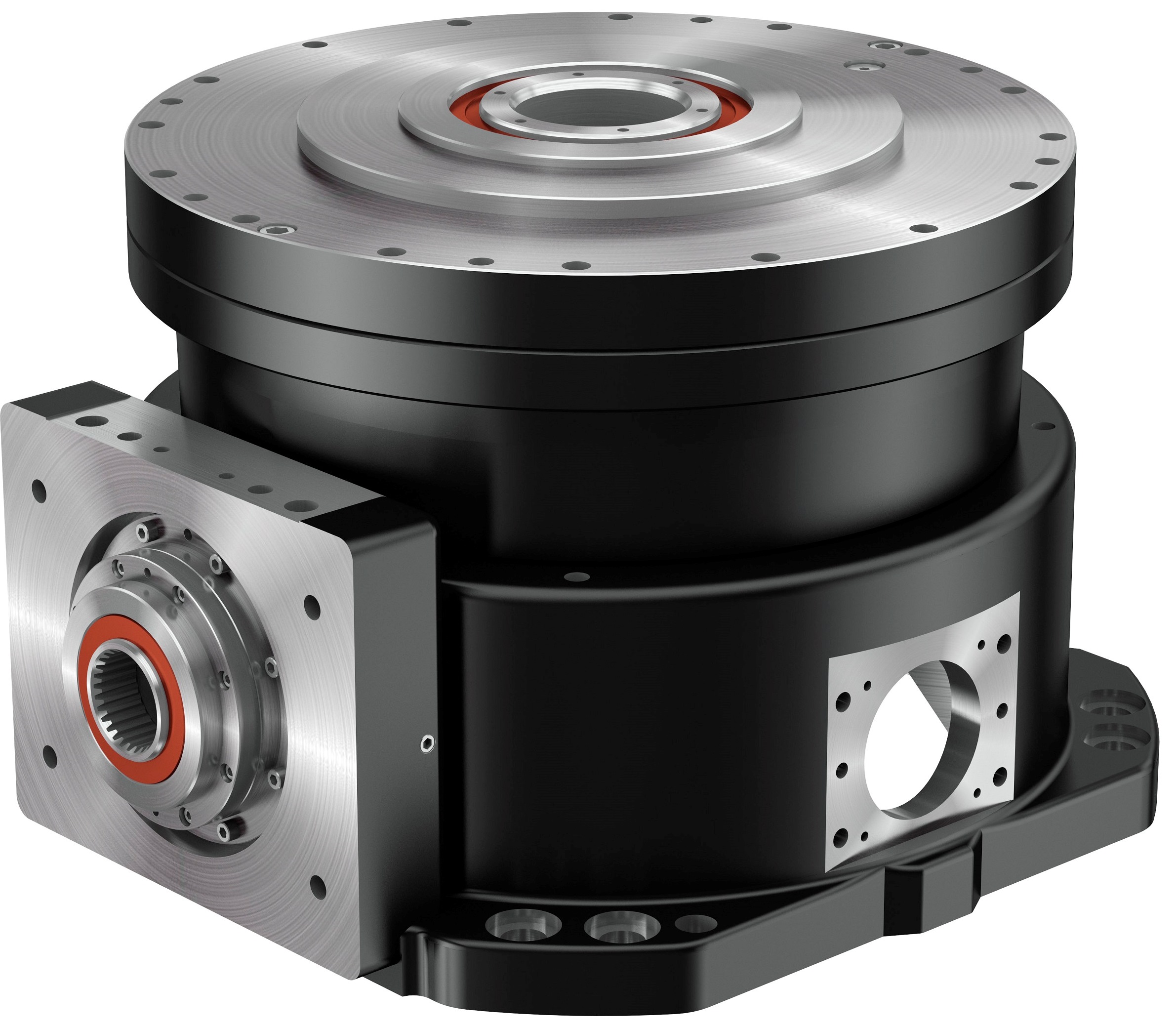

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Ratio | 65.4 | 240 |
| Rated Torque | 490 Nm | 8820 Nm |
| Rated Output speed | - | 15 rpm |
| Allowable Thrust load | 14700 N | 88200 N |
| Backlash | 1 arc.min | 1.5 arc.min |
Variant Applications
| Machines / Applications |
|---|
| Welding turntables |
| Index tables |
| Heavy welding positioners |
RS
The RS type is a low profile gearheads that are pre-lubricated with a sealed structure and are available in five types to suit different load capacities. It offers High accuracy, shock load resistance. Backlash available is 1 arc min to 1.5 arc min.

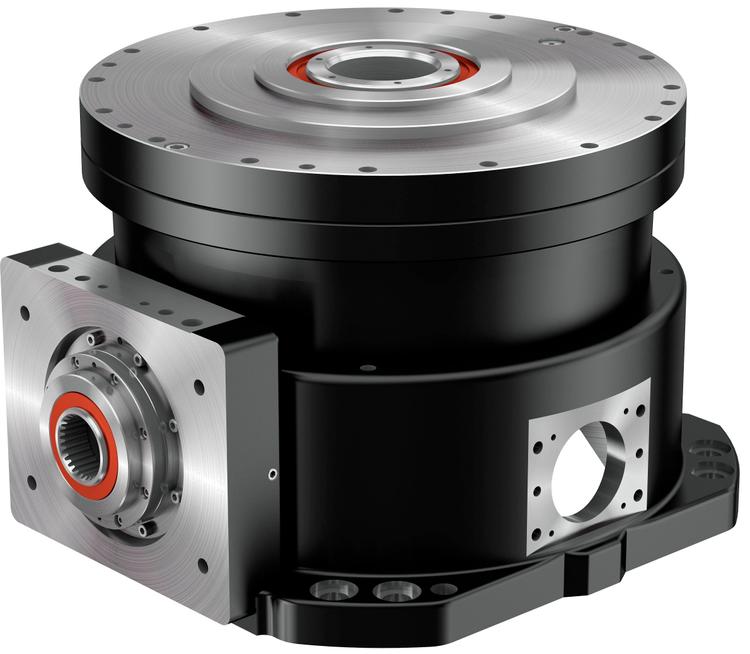

Variant Image
