Precision Reduction Gearbox

/ Precision Reduction Gearbox

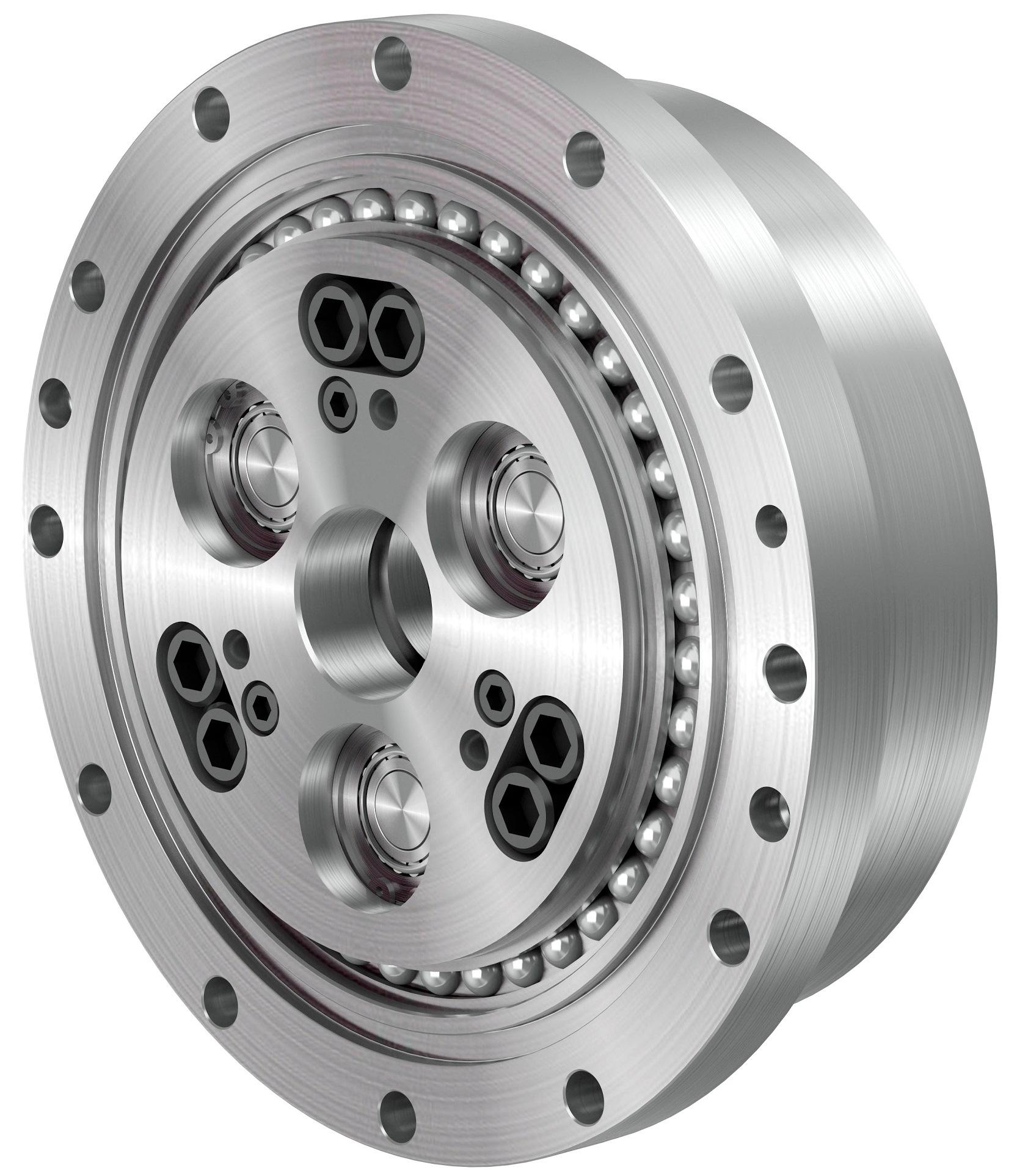

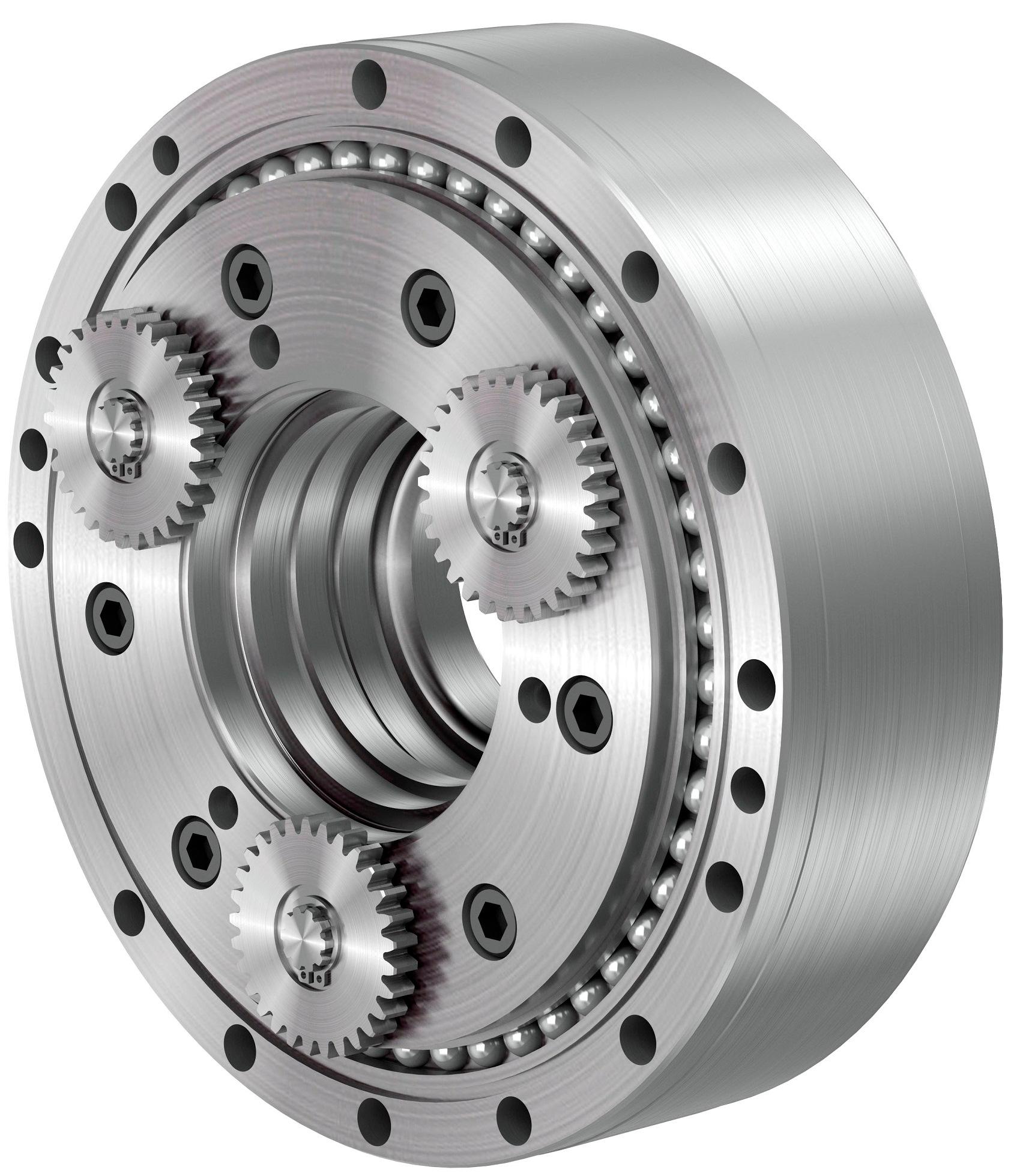

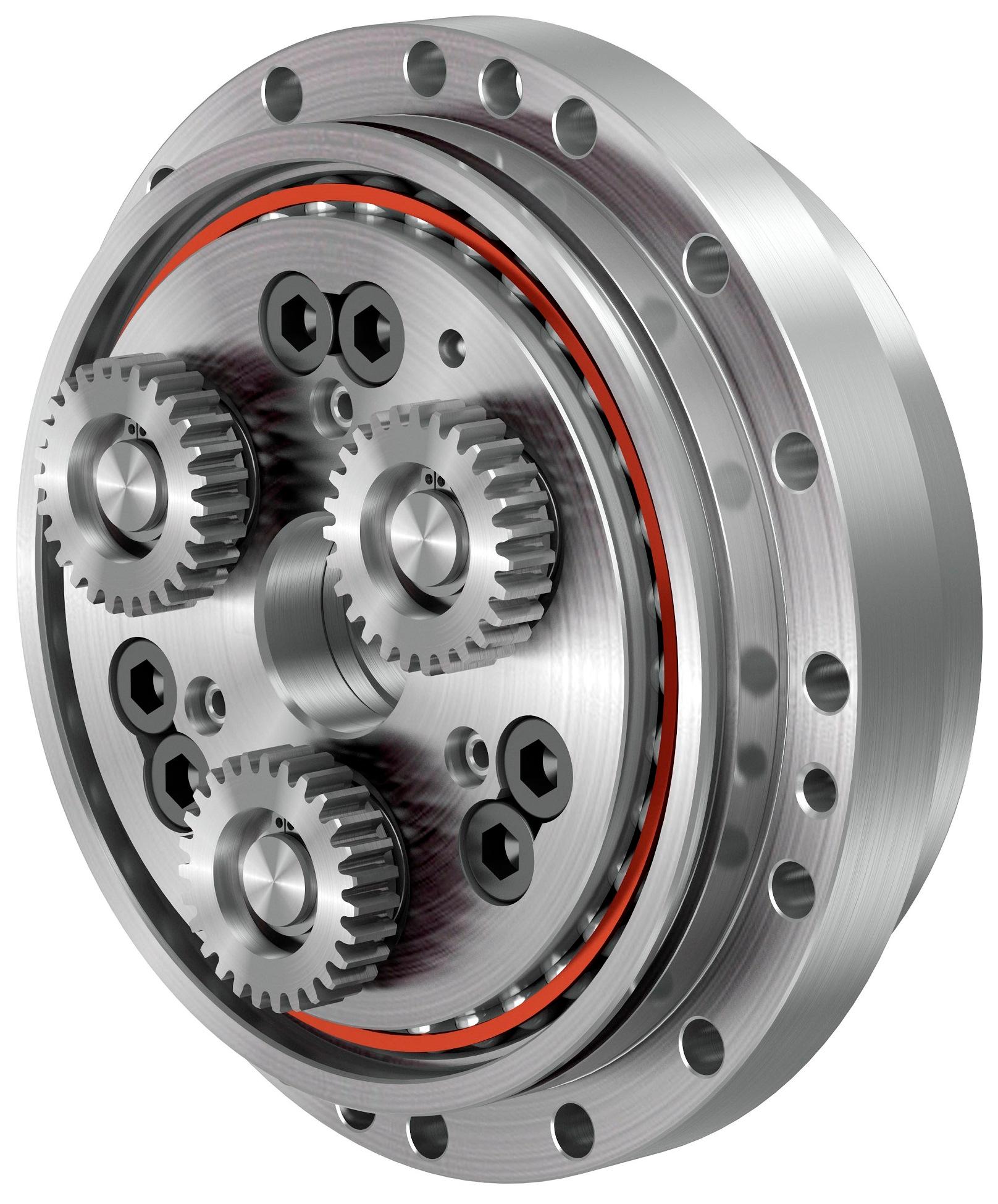

RV are a type of gearhead or gear reducer, which is used to reduce the speed of an input shaft and increase the torque output. RV gearheads typically consist of a series of gears arranged in a compact housing. The input shaft rotates the gears, which reduces the speed and increases the torque output at the output shaft. The reduction ratio of an RV gearhead is determined by the number of gears and their size.

Precision Reduction Gearbox

RV are a type of gearhead or gear reducer, which is used to reduce the speed of an input shaft and increase the torque output. RV gearheads typically consist of a series of gears arranged in a compact housing. The input shaft rotates the gears, which reduces the speed and increases the torque output at the output shaft. The reduction ratio of an RV gearhead is determined by the number of gears and their size.

Selection Parameters
ParametersMinMax
Standard Ratio27192.42
Rated Torque 58 Nm14700 Nm
Rated Output speed 15 rpm30 rpm
Allowable Thrust load1470 N51000 N
Backlash1 arc.min1.5 arc.min
Machines / Applications
Robot arm
Robot wrist axis
Robot swing axis
Indexing table
Industries
Steel
Tyre
Material Handling
Automobile
Aviation
Enquire Now
