AF-C

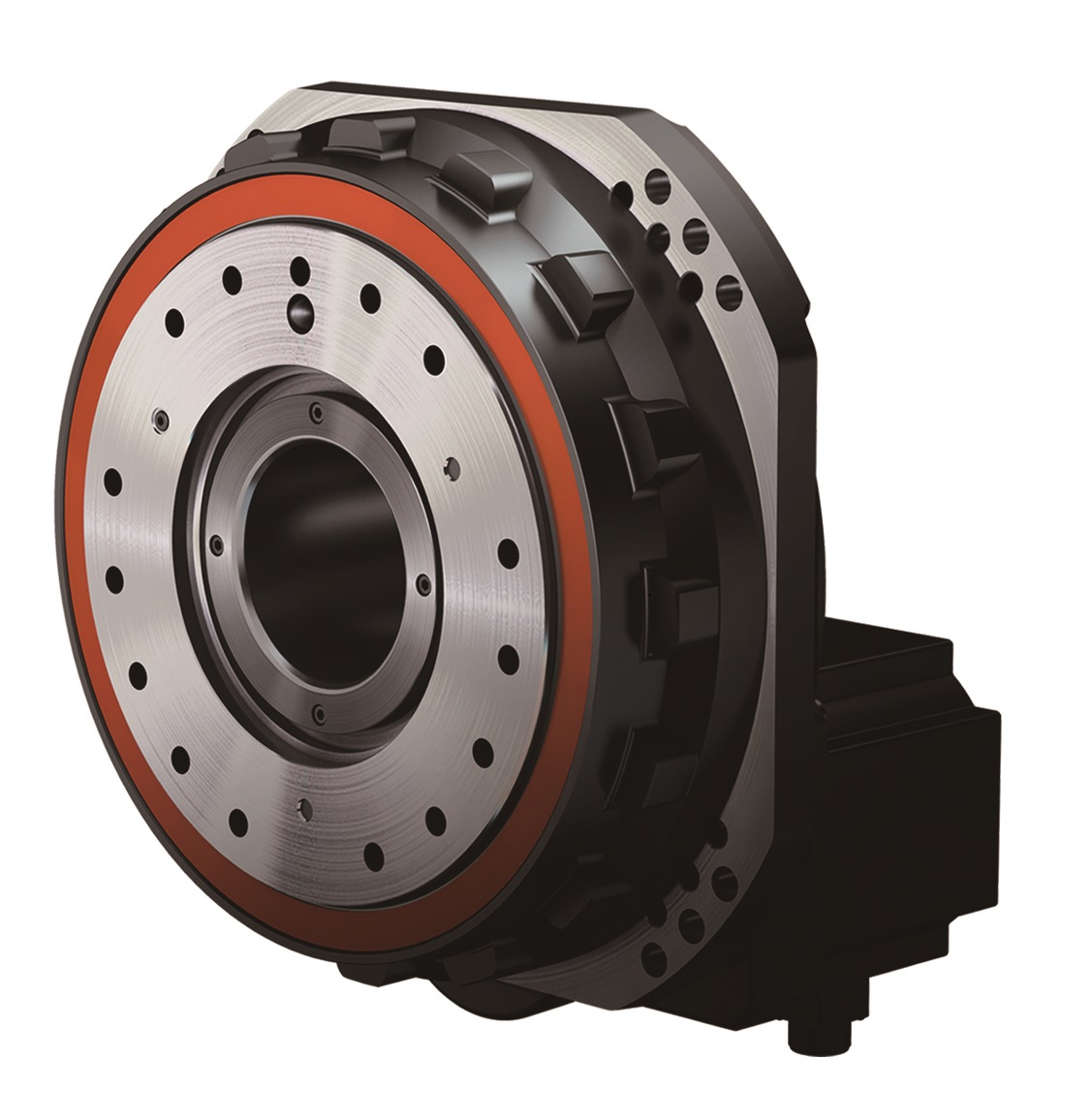

AF-N is hollow shaft type compact actuator that is directly mounted with a servomotor. It is designed to be highly accurate, rigid, and reliable, and it is a successor to the Precision Reduction Gear RV. The AF series allows for a reduction in the design and assembly of gears and motors for customers.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Ratio | 2289/19 | 157 |
| Rated capacity | 1 kW | 5 kW |
| Rated Torque | 460 Nm | 3002 Nm |
| Rated Output speed | 12.7 rpm | 16.7 rpm |
| Allowable Thrust load | 11760 N | 29400 N |
| Backlash | - | 1 arc.min |
Variant Applications
| Machines / Applications |
|---|
| Palletizing robot |
| Index table |
| Stacker crane |
| Pipe bending |
| Gantry loader |
| ATC magazine |
| SCARA robot |
| Cylindrical coordinate robot |
| Industries |
|---|
| Automation |
| Tyre |
| Aviation |
